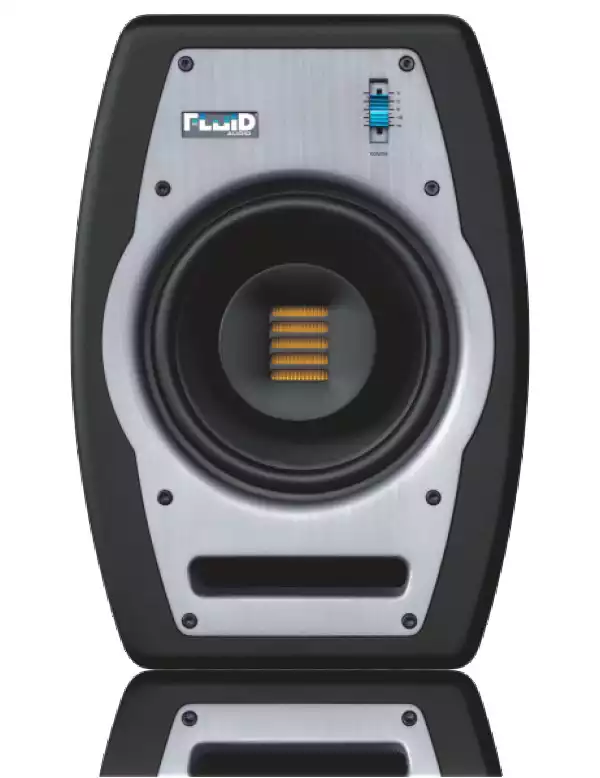

What makes the FPX7 so unique, however, is that the AMT tweeter is mounted in the center of the woofer – in a coaxial configuration, which makes this speaker the first of its kind.

Taking what we learned from our success with the FX8, we incorporated the AMT tweeter much in the same way.  Coaxial drivers, found in such world renowned monitors such as the Manley ML10 with Tannoy drivers, provide such accuracy and detail because all of the energy from the tweeter and woofer radiate from the exact same position in space. This is critical for accurate off-axis response as well as phase coherence.

The AMT tweeter is mounted to a custom designed waveguide, which provides it with wide dispersion and an expansive sweet spot. The complex, DSP controlled crossover provides a perfect blending of the woofer to the AMT tweeter and ensures that there is effectively zero variance amplifier to amplifier.

• Seamless, transparent response in a compact footprint
• 7” composite cone, low-frequency driver
• Air motion transformer tweeter provides an extremely fast and accurate response
• Bi-amplified 140Watt Class A/B amplification (90w woofer/50w AMT tweeter)
• Acoustic Space Control lets you calibrate the FPX7 to your mixing environment ( 0, -2, -4db )
• Tweeter high frequency trim control ( +2, 0, -2db )
• Fader Volume control on front baffle for easy access
• 42Hz – 27kHz frequency response (+/-3dB)
• Front loaded slot port for directional bass response
• Amplifier standby function to conserve energy

Specifications

• Frequency response: 42 Hz – 27 kHz (+/-3dB)
• Crossover frequency: 3.5 kHz
• Amplifier power: 140 watts RMS
• Signal-to-noise: > 100 dB (typical A-weighted)
• Polarity: Positive signal at + input produces outward LF one displacement

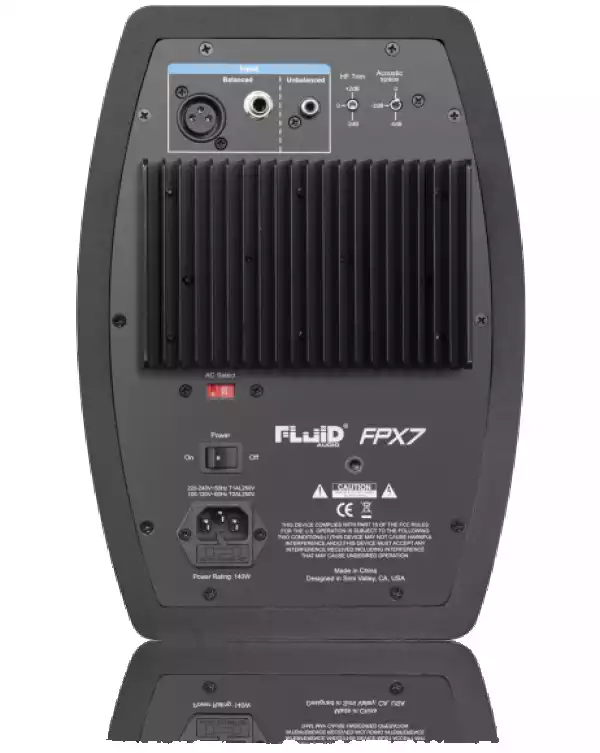

• Input impedance: 20 k ohms balanced, 10 k ohms unbalanced
• Input sensitivity: 85 mV pink noise input produces 95dBA output SPL
• @ one meter with volume control at maximum
• Power: Factory programmed for either 100 – 120V – 60Hz, 220 – 230V – 50Hz
• Protection: RF interference, output current limiting, over temperature, turn-on/off transient and subsonic filter
• Cabinet: Vinyl-laminated MDF
• Size (single monitor): 310 x 216 x 264 mm / 12.1" x 8.5" x 10.5" (HxWxD)
• Weight (single monitor): 22 lbs / 10 kg

Model	C5	C5BT	F4	F5	FX8	FPX7	FX50	FX80
Configuration	2-way	2-way	2-way	2-way	2-way Coax	2-way Coax	2-way Coax	2-way Coax
System Type	Active Studio Monitor	Active Studio Monitor	Active Studio Monitor	Active Studio Monitor	Active Studio Monitor	Active Studio Monitor	Active Studio Monitor	Active Studio Monitor
Woofer	5" paper pulp composite cone	5" paper pulp composite cone	4" paper pulp composite cone	5" paper pulp composite cone	8" paper pulp composite cone	7" composite cone	5" paper pulp composite cone	8" paper pulp composite cone
Mid Driver
Tweeter	1" PEI diaphragm	1" PEI diaphragm	1" Soft Dome	1" Soft Dome	1.2" Soft Dome	L43.5*W28 AMT	1" Soft Dome	1.2" Soft Dome
Frequency Response	54Hz - 22KHz (+/- 3db)	54Hz - 22KHz (+/- 3db)	69Hz - 22KHz (+/- 3db)	49Hz - 22KHz (+/- 3db)	35Hz - 22KHz (+/- 3db)	42Hz - 27KHz (+/- 3db)	49Hz - 22KHz (+/- 3db)	35Hz - 22KHz (+/- 3db)
Max Peak SPL	97	97	98	101db	102db	106
Amplifier Class	CLASS AB	CLASS AB	CLASS AB	Bi-Amped CLASS AB	Bi-Amped CLASS AB	Bi-Amped CLASS AB	Bi-Amped CLASS D	Bi-Amped CLASS D
Power Output	40W (2x20W)	40W (2x20W)	30W (2x15W)	70W	130W	130W	90W	110W
High Frequency				30W	50W	50W	40W	50W
Mid-Frequency
Low Frequency				40W	80W	90W	50W	60W
Input Impedence	20KΩ Balanced / 10KΩ unbalanced	20KΩ Balanced / 10KΩ unbalanced	20KΩ Balanced / 10KΩ unbalanced	20KΩ Balanced / 10KΩ unbalanced	20KΩ Balanced / 10KΩ unbalanced	20KΩ Balanced / 10KΩ unbalanced	20KΩ Balanced / 10KΩ unbalanced	20KΩ Balanced / 10KΩ unbalanced
HF Level Adjust						Y	Y	Y
MF Level Adjust							Y	Y
System Volume	-23dB to +6dB	-23dB to +6dB	-23dB to +6dB	-23dB to +6dB	-30dB to +6dB	-30dB to +6dB	-23dB to +6dB	-30dB to +6dB
Indicators	Power	Power	Power / Standby	Power / Standby	Power / Standby	Power / Standby	Power / Standby	Power / Standby
Standby Function	No	No	Yes	Yes	Yes	Yes	Yes	Yes
Inputs	Balanced TRS, Unbalanced RCA	Balanced TRS, Unbalanced RCA, optical toslink, bluetooth 4.0 aptX	Balanced TRS, Unbalanced RCA	Balanced TRS, Balanced XLR, Unbalanced RCA	Balanced TRS, Balanced XLR, Unbalanced RCA	Balanced TRS, Balanced XLR, Unbalanced RCA	Balanced TRS, Balanced XLR, Unbalanced RCA	Balanced TRS, Balanced XLR, Unbalanced RCA
Enclosure Construction	MDF	MDF	MDF	MDF	MDF	MDF	MDF	MDF
Finish	Black Vinyl Wrap	Black Vinyl Wrap	Black Vinyl Wrap	Black Vinyl Wrap	Black Vinyl Wrap	Black Vinyl Wrap	Black Vinyl Wrap	Black Vinyl Wrap
Port Configuration	Rear Firing Port	Rear Firing Port	Rear Firing Port	Front Firing Slot Port	Front Firing Slot Port	Front Firing Slot Port	Front Firing Slot Port	Front Firing Slot Port
Depth	7.6" / 193 mm	7.6" / 193 mm	6.78" / 172 mm	7.68" / 195 mm	10.6" / 270 mm	10.5" / 264 mm	9.1" / 230 mm	11.6" / 295 mm
Width	6.85" / 174 mm	6.85" / 174 mm	5.9" / 150 mm	6.92" / 176 mm	10" / 254 mm	8.5" / 216 mm	6.9" / 176 mm	10" / 254 mm
Height (D X W X H)	10.1" / 256 mm	10.1" / 256 mm	8.74" / 222 mm	10.23" / 260 mm	13.4" / 340 mm	12.1" / 308 mm	9.2" / 234 mm	13.4" / 340 mm
Weight	15.4 Lbs. (7 Kg.) pair	15.9 Lbs. (7.2 Kg.) pair	13.2 Lbs. (6 Kg.) pair	20.3 Lbs. (9.2 Kg.)pair	41.4 Lbs. (18.8 Kg.)pair	22 Lbs. (10 Kg.) single	8.4 Lbs. (3..8 Kg.) single	17.2 Lbs. (7.8 Kg.) single
