C5

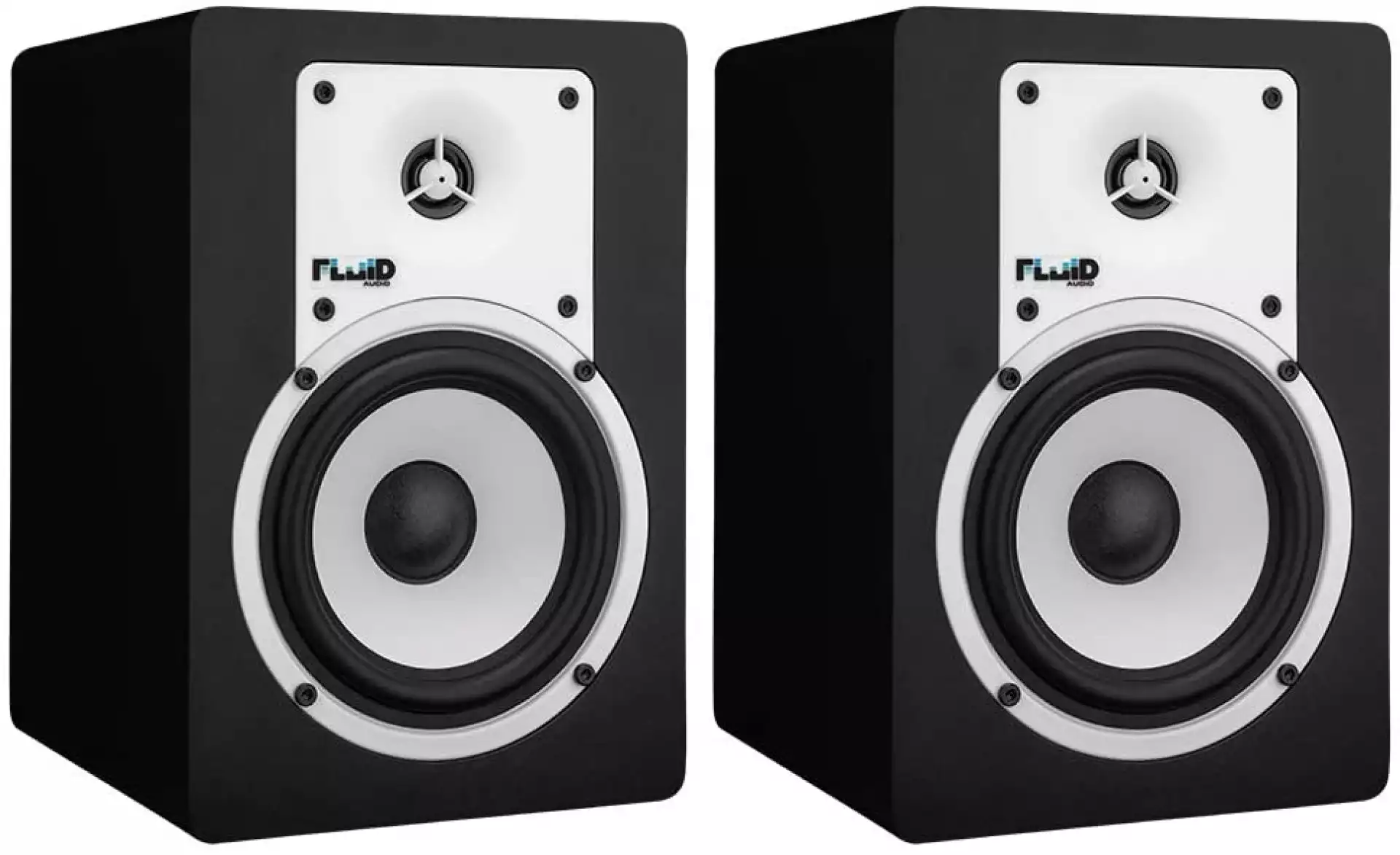

The Classic Series C5 studio monitor from Fluid Audio redefines the sound quality of a "budget" studio monitor. Having more than 23 years designing speakers, it's one thing to have the luxury to design great sounding monitors using expensive components and unique, "space age" materials…However, what we set out to do was more of a challenge: Create an extraordinary sounding studio monitor - using just ordinary, "classic" technologies and components.

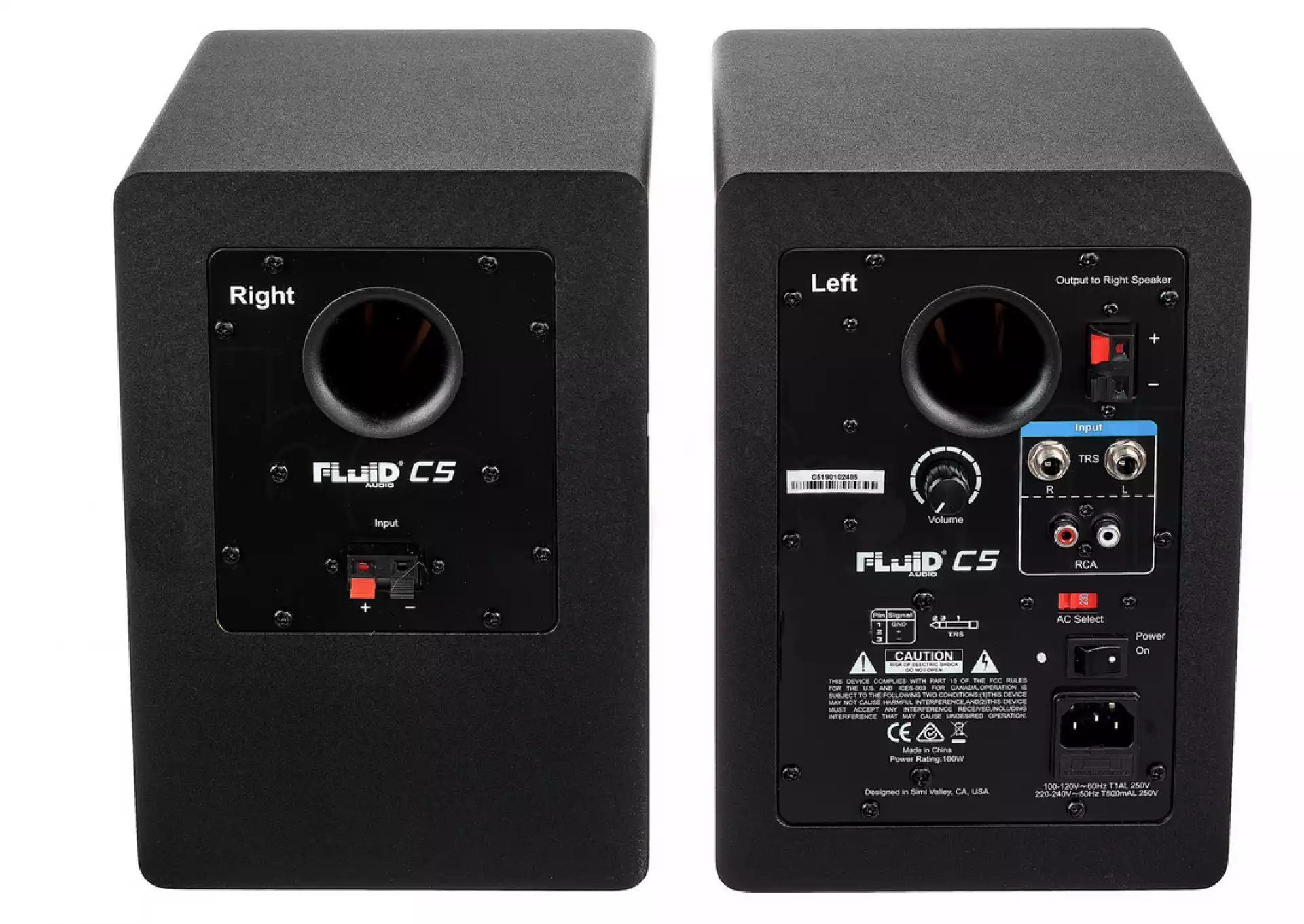

No Beryllium. No Titanium...just proven technologies and components put together to sound great... and at an attractive price point. The C5 features a 5-inch low frequency transducer and a 1-inch PEI diaphragm tweeter mounted to a specially designed waveguide to create a better off-axis response and more coherent soundstage. With TRS and RCA inputs and 40 watts of total power, the C5 is perfect for any desktop monitoring application.
Specifications
- Frequency response: 54 Hz – 22 kHz (+/-3dB)
- Crossover frequency: 4.5 kHz
- Amplifier power: 2 x 20 watts (40W total)
- Signal-to-noise: > 90 dB (typical A-weighted)
- Polarity: Positive signal at + input produces outward LF one displacement
- Input impedance: 20 k ohms balanced, 10 k ohms unbalanced
- Input sensitivity: 85 mV pink noise input produces 85dBA output SPL @ one meter with volume control at maximum (97dB Max SPL)
- Power: Fixed 110V ~50/60 Hz or 220V~50/60 Hz
- Protection: RF interference, output current limiting, over temperature, turn-on/off transient and subsonic filter
- Cabinet: Vinyl-laminated MDF
- Size (single monitor): 256 x 174 x 193 mm (HxWxD)
- Weight (pair): 18.7 lbs. / 8.5 kg
| Model | C5 | C5BT | F4 | F5 | FX8 | FPX7 | FX50 | FX80 |
|---|---|---|---|---|---|---|---|---|
 |
|
 |
 |
 |
 |
 |
 |
|
| Configuration | 2-way | 2-way | 2-way | 2-way | 2-way Coax | 2-way Coax | 2-way Coax | 2-way Coax |
| System Type | Active Studio Monitor | Active Studio Monitor | Active Studio Monitor | Active Studio Monitor | Active Studio Monitor | Active Studio Monitor | Active Studio Monitor | Active Studio Monitor |
| Woofer | 5" paper pulp composite cone | 5" paper pulp composite cone | 4" paper pulp composite cone | 5" paper pulp composite cone | 8" paper pulp composite cone | 7" composite cone | 5" paper pulp composite cone | 8" paper pulp composite cone |
| Mid Driver | ||||||||
| Tweeter | 1" PEI diaphragm | 1" PEI diaphragm | 1" Soft Dome | 1" Soft Dome | 1.2" Soft Dome | L43.5*W28 AMT | 1" Soft Dome | 1.2" Soft Dome |
| Frequency Response | 54Hz - 22KHz (+/- 3db) |
54Hz - 22KHz (+/- 3db) |
69Hz - 22KHz (+/- 3db) |
49Hz - 22KHz (+/- 3db) |
35Hz - 22KHz (+/- 3db) |
42Hz - 27KHz (+/- 3db) |
49Hz - 22KHz (+/- 3db) |
35Hz - 22KHz (+/- 3db) |
| Max Peak SPL | 97 | 97 | 98 | 101db | 102db | 106 | ||
| Amplifier Class | CLASS AB | CLASS AB | CLASS AB | Bi-Amped CLASS AB |
Bi-Amped CLASS AB |
Bi-Amped CLASS AB |
Bi-Amped CLASS D | Bi-Amped CLASS D |
| Power Output | 40W (2x20W) | 40W (2x20W) | 30W (2x15W) | 70W | 130W | 130W | 90W | 110W |
| High Frequency | 30W | 50W | 50W | 40W | 50W | |||
| Mid-Frequency | ||||||||
| Low Frequency | 40W | 80W | 90W | 50W | 60W | |||
| Input Impedence | 20KΩ Balanced / 10KΩ unbalanced | 20KΩ Balanced / 10KΩ unbalanced | 20KΩ Balanced / 10KΩ unbalanced | 20KΩ Balanced / 10KΩ unbalanced | 20KΩ Balanced / 10KΩ unbalanced | 20KΩ Balanced / 10KΩ unbalanced | 20KΩ Balanced / 10KΩ unbalanced | 20KΩ Balanced / 10KΩ unbalanced |
| HF Level Adjust | Y | Y | Y | |||||
| MF Level Adjust | Y | Y | ||||||
| System Volume | -23dB to +6dB | -23dB to +6dB | -23dB to +6dB | -23dB to +6dB | -30dB to +6dB | -30dB to +6dB | -23dB to +6dB | -30dB to +6dB |
| Indicators | Power | Power | Power / Standby | Power / Standby | Power / Standby | Power / Standby | Power / Standby | Power / Standby |
| Standby Function | No | No | Yes | Yes | Yes | Yes | Yes | Yes |
| Inputs | Balanced TRS, Unbalanced RCA | Balanced TRS, Unbalanced RCA, optical toslink, bluetooth 4.0 aptX | Balanced TRS, Unbalanced RCA | Balanced TRS, Balanced XLR, Unbalanced RCA | Balanced TRS, Balanced XLR, Unbalanced RCA | Balanced TRS, Balanced XLR, Unbalanced RCA | Balanced TRS, Balanced XLR, Unbalanced RCA | Balanced TRS, Balanced XLR, Unbalanced RCA |
| Enclosure Construction | MDF | MDF | MDF | MDF | MDF | MDF | MDF | MDF |
| Finish | Black Vinyl Wrap | Black Vinyl Wrap | Black Vinyl Wrap | Black Vinyl Wrap | Black Vinyl Wrap | Black Vinyl Wrap | Black Vinyl Wrap | Black Vinyl Wrap |
| Port Configuration | Rear Firing Port | Rear Firing Port | Rear Firing Port | Front Firing Slot Port | Front Firing Slot Port | Front Firing Slot Port | Front Firing Slot Port | Front Firing Slot Port |
| Depth | 7.6" / 193 mm | 7.6" / 193 mm | 6.78" / 172 mm | 7.68" / 195 mm | 10.6" / 270 mm | 10.5" / 264 mm | 9.1" / 230 mm | 11.6" / 295 mm |
| Width | 6.85" / 174 mm | 6.85" / 174 mm | 5.9" / 150 mm | 6.92" / 176 mm | 10" / 254 mm | 8.5" / 216 mm | 6.9" / 176 mm | 10" / 254 mm |
| Height (D X W X H) | 10.1" / 256 mm | 10.1" / 256 mm | 8.74" / 222 mm | 10.23" / 260 mm | 13.4" / 340 mm | 12.1" / 308 mm | 9.2" / 234 mm | 13.4" / 340 mm |
| Weight | 15.4 Lbs. (7 Kg.) pair | 15.9 Lbs. (7.2 Kg.) pair | 13.2 Lbs. (6 Kg.) pair | 20.3 Lbs. (9.2 Kg.)pair | 41.4 Lbs. (18.8 Kg.)pair | 22 Lbs. (10 Kg.) single | 8.4 Lbs. (3..8 Kg.) single | 17.2 Lbs. (7.8 Kg.) single |
