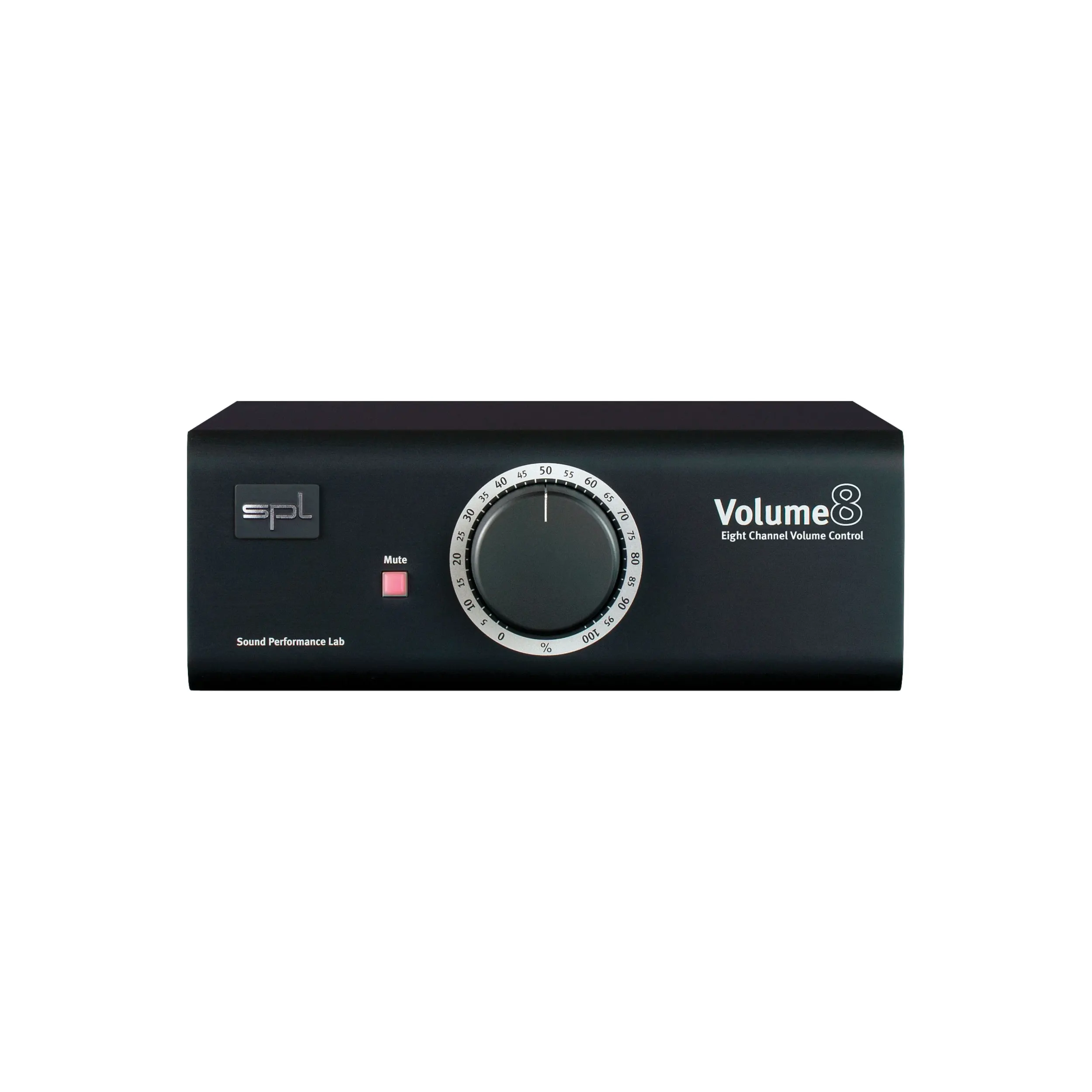

8-channel Volume Controller
Volume 8 is an active DAW monitoring controller and a puristic surround preamplifier. High-end volume potentiometer and illuminated mute switch from ALPS; the potentiometer controls directly

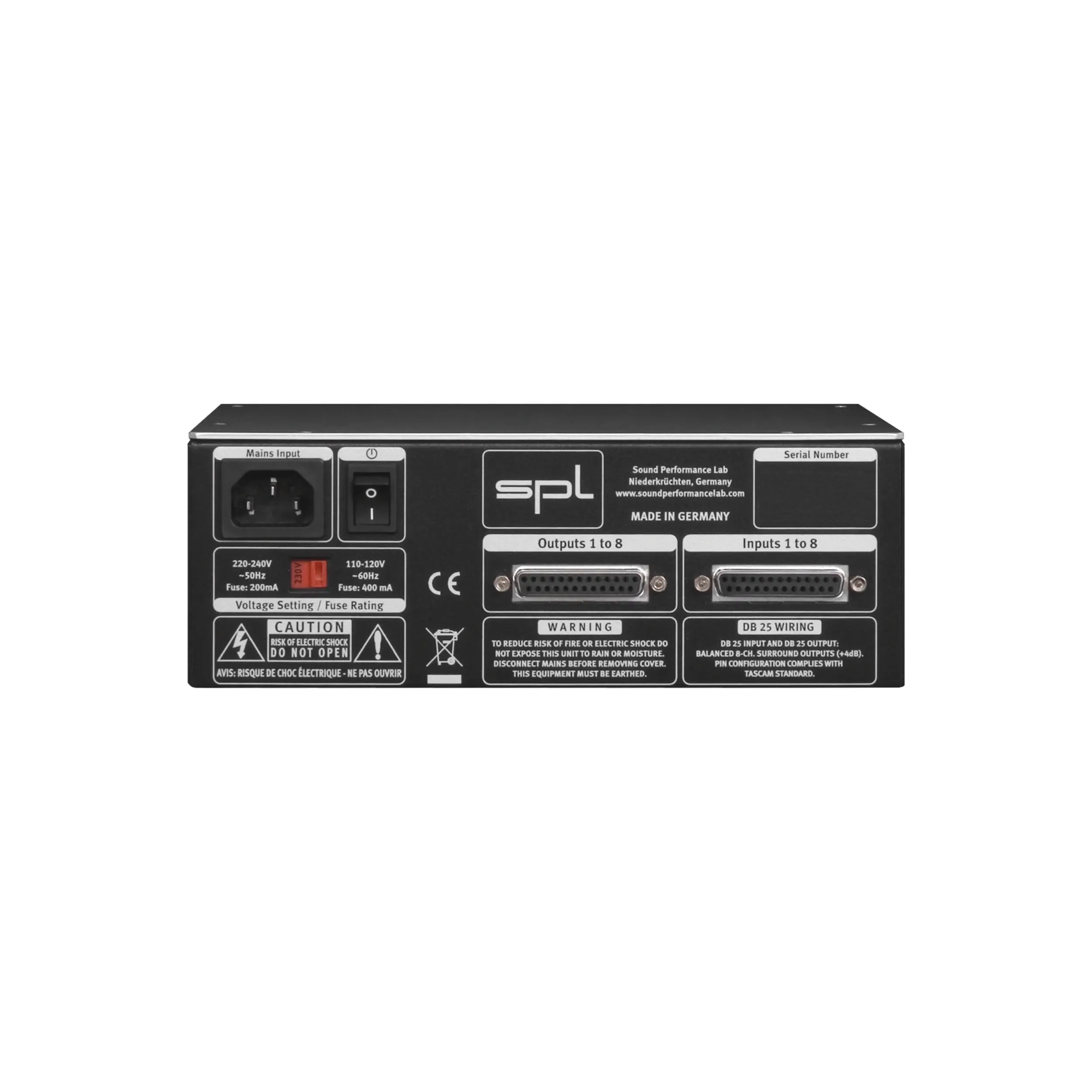

Analog inputs & outputs; DB25 (TASCAM standard, balanced)
Maximum input & output gain: 21 dBu
Input impedance: 22 kΩ
Output impedance: 100 Ω
Frequency range (-3 dB): 10 Hz – 100 kHz
THD + N (10 Hz – 22 kHz, 15 dBu): -100 dBu
Noise (A-weighted): -102 dBu
Crosstalk (1 kHz): 80 dB
Common mode rejection (1 kHz): 60 dB
Dynamic range: 123 dB
Internal Linear Power Supply with Toroidal Transformer
Operating voltage for analog audio: +/- 15 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply
Mains voltage (selectable): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 250 mA
Fuse for 115 V: T 500 mA
Power consumption: max. 15 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 215 x 91 x 220 mm
8.46 x 3.58 x 8.66 iShipping weight (incl. packaging): 2.95 kg
