Premium DAC with VOLTAiR technology.

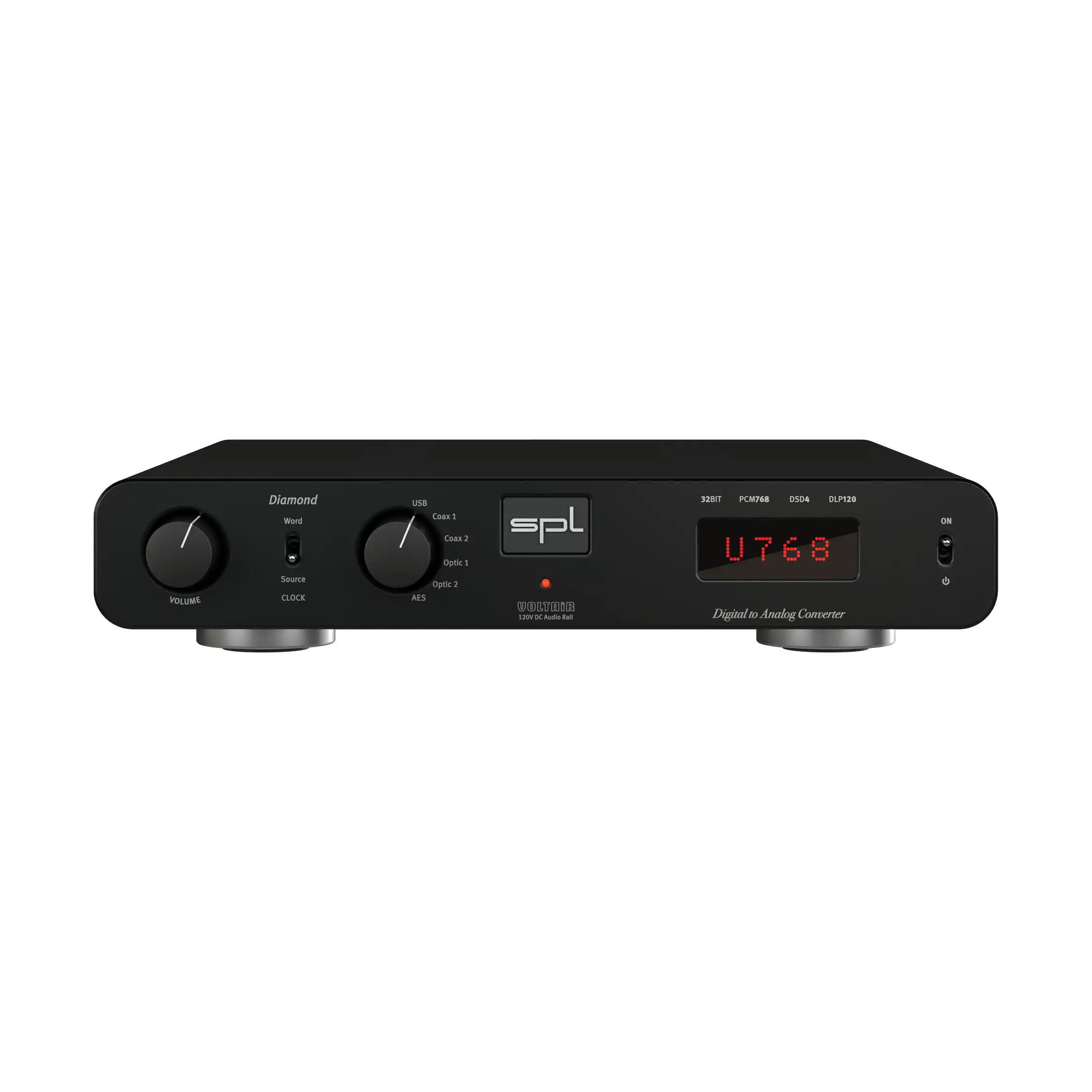

Diamond is the perfect DAC and preamplifier for everyone who plays music exclusively from digital sources. Diamond offers connectivity for six digital sources and an external word clock. The superior VOLTAiR technology and the premium DAC combined with an analog volume control allowing for highest resolution at any volume makes the Diamond an one-of-a-kind DA converter that delivers finest soundstages with an unrivalled analog feel.
Specifications

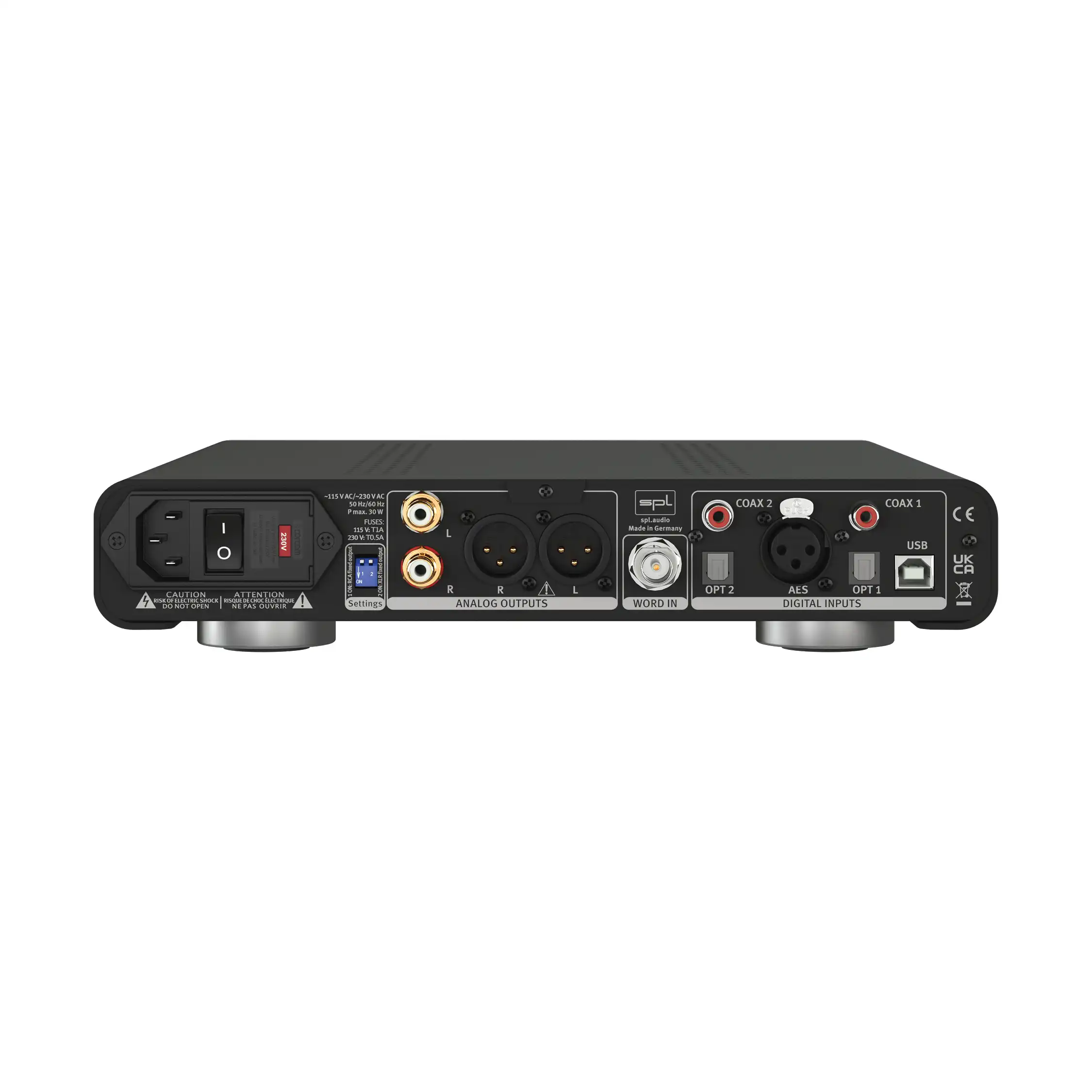

Analog & Outputs: XLR (balanced), RCA
Maximum output level (0 dBFS = max. +15 dBu): 32.5 dBu
Output impedance: 75 Ω
Frequency range (0 dBu): 10 Hz – 100 kHz
Crosstalk (0 dBu, 1 kHz): -108 dB
THD & N (0 dBu, 1 kHz): 0.001 %
Noise (A-weighted): -102 dBu
Dynamic range (0 dBFS = +15 dBu => 117,3 dB): 134.5 dB
Digital Inputs, DAC768
AES/EBU (XLR), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
Coaxial SPDIF (RCA), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
Optical SPDIF (Toslink F 06), PCM sample rates: 44.1/48/88.2/96/ with Glass fibre <1m 176.4/192 kHz
USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
0 dBFS calibrated to: 15 dBu
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: + 12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 0.5 A
Fuse for 115 V: T 1 A
Power consumption: max. 40 VA
Stand-by power consumption: < 0.3 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 278 x 57 x 300 mm (11 x 2.24 x 11.81 inch)
Unit weight: 3.15 kg (6.95 lbs)
Shipping weight (incl. packaging): 5.35 kg (11.79 lbs)
