Channel strip with Tube Saturation, De-Esser, Transient Designer, Compressor and EQ
Discrete built-in preamplifier with 68 dB gain
Simultaneous connection of two microphones with separately switchable 48V phantom power supply for simple A/B comparisons without reconnection
20 dB pad, phase inversion and high-pass filter switchable at 80 HZ
1x XLR line input with adjustable gain from -20 dB to +16 dB
1x 6.3 mm Jack instrument input adjustable from -6 dB to +30 dB
Tube saturation determines the degree of tube saturation
Tube Post option switches the Tube Saturation after the EQ stage and before the output stage
De-esser with adjustable S-reduction
Transient Designer with attack and sustain controls for envelope editing
Compressor with adjustable threshold via compression control and make-up gain
Equaliser with semi-parametric low/mid and mid/high bands and Air Band with centre frequency at 19 kHz
Illuminated VU meter visualises input level, output level and gain reduction

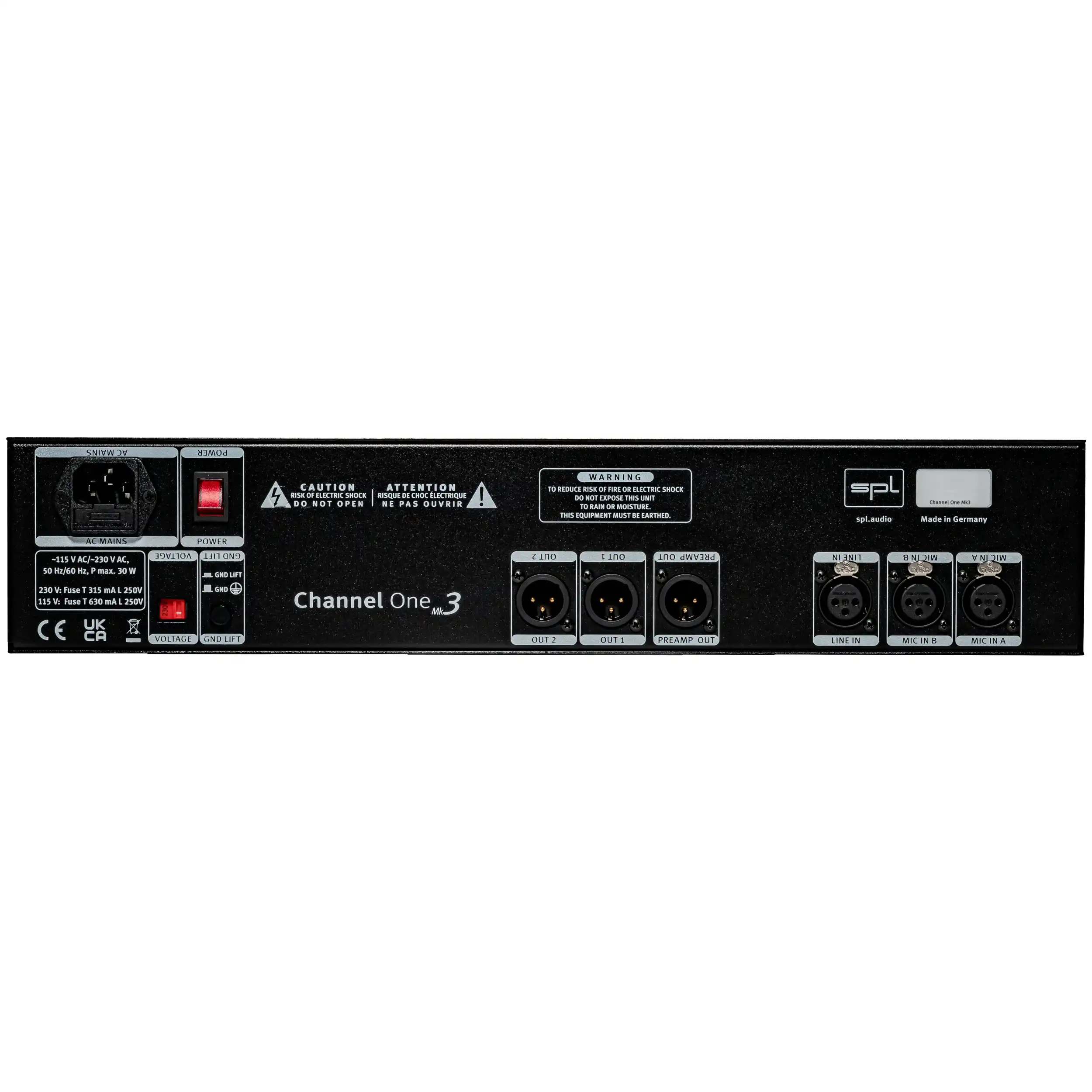

2 XLR outputs connected in parallel for back-up or emergency systems
1 x XLR Preamp Out picks up the signal directly after preamplification and can be used simultaneously with Out 1 and 2
Dimensions: 482 x 88 x 210 mm
Weight: 6 kg
