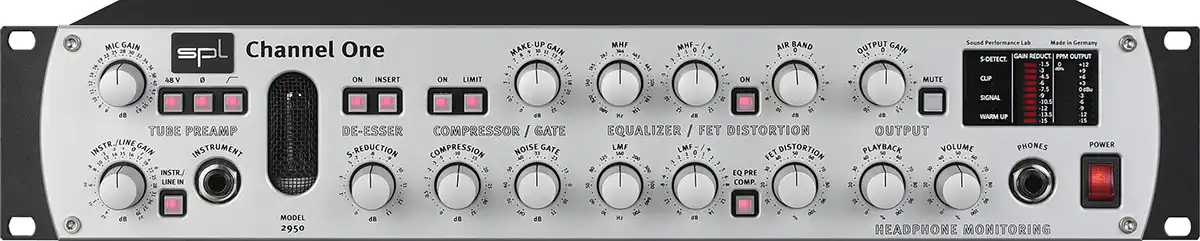

The perfect front-end for the modern producer.
For over 20 years, Channel One has been a synonym for a high-quality and extremely musical recording and mixing channel strip.
In the newest Mk3 version, this classic has been thoroughly revised and, in addition to a higher internal audio voltage (now +/-18 V) for even better, more detailed sound, a further improved preamplifier section, an integrated Transient Designer, a Tube Saturation stage and a Mic A/B comparison option for two microphones and other great features that raise the modern recording and mixing studio to a new level of quality. With de-esser, compressor and equalizer, all the important tools of a real channel strip are still on board. Whether it’s a microphone, line, or instrument signal, the Channel One Mk3 makes any source sound like a professionally recorded signal.
The new design of the SPL Studio Series perfectly highlights the sonic qualities of this 3rd generation Channel One.
Specifications
Analog inputs & output; XLR (balanced)
Maximaler Eingangspegel (Mic, +9.5dB – +68 dB): 13.5 dBu
Maximaler Eingangspegel (Line, -20 dB – +16 dB): 22.5 dBu
Maximaler Eingangspegel (Instrument, -6 dB – +30dB): 15 dBu
Eingangsimpedanz (Mic/Line): 10 kΩ
Eingangsimpedanz (Instrument): 1.1 MΩ
Ausgangsimpedanz: 75 Ω
Frequenzgang: 10 Hz – 200 kHz
Equivalent Input Noise (EIN): -126 dBu
Rauschen (A-bewertet, Mic Preamp, 150 Ω, 30 dB Gain): -95 dBu
Rauschen (A-bewertet, Mic Preamp, 150 Ω, 50 dB Gain): -79.5 dBu
Rauschen (A-bewertet, Mic Preamp, 150 Ω, 68 dB Gain): -61.7 dBu
Rauschen (A-bewertet, Line/Instr Preamp, 600 Ω, 5 dB Gain): -96.5 dBu
Rauschen (A-bewertet, Line/Instr Preamp, 600 Ω, 20 dB Gain): -84.7 dBu
Gleichtaktunterdrückung (1 kHz) Mic Eingang: < 80 dB
Gleichtaktunterdrückung (1 kHz) Line Eingang: < 50 dB
THD+N Ratio (1 kHz), Mic 30 dB Gain: 0.0022 %
THD+N Ratio (1 kHz), Mic 50 dB Gain: 0.013 %
THD+N Ratio (1 kHz), Mic 68 dB Gain (Max.): 0.048 %
THD+N Ratio (1 kHz), Line 0 dB Gain: 0.0022 %
THD+N Ratio (1 kHz), Line 16 dB Gain: 0.0017 %
THD+N Ratio (1 kHz), Instr. Unity (100 kΩ Quell-Impedanz): 0.012 %
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/-18 V
Operating voltage for relays and LEDs: +12 V
Tubes anode voltage: +250 V
Tubes heating voltage: +12.6 V
Phantom power: +48 V
Mains Power Supply
Mains voltage (selectable): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 315 mA
Fuse for 115 V: T 630 mA
Power consumption: max. 22.3 VA
Dimensions & Weight
W x H x D (width x height x depth): 482 x 88 x 210 mm (19 x 3.46 x 8.27 inch)
Unit weight: 6 kg (13.22 lbs)
Shipping weight (incl. packaging): 7.6 kg (15,43 lbs)
