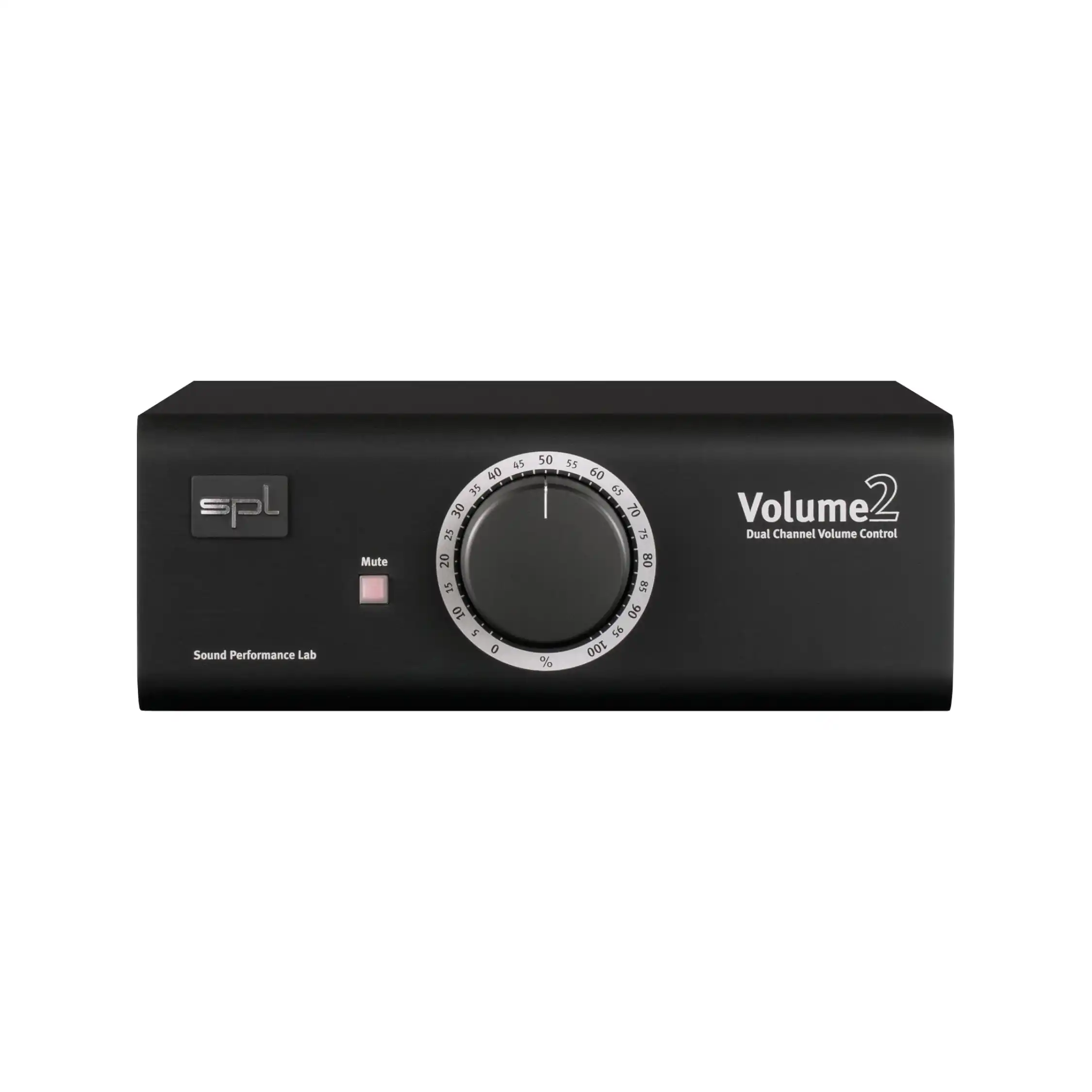

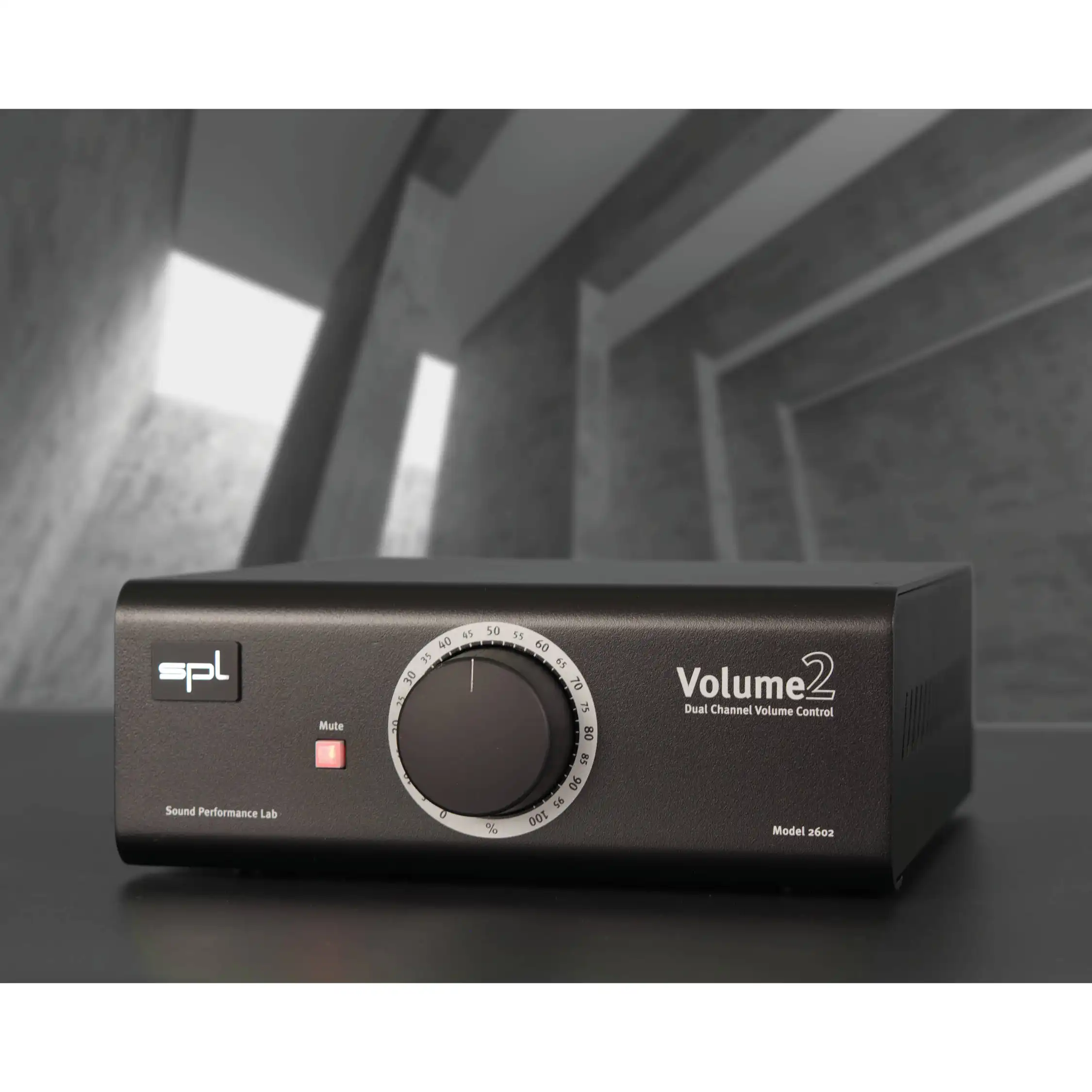

Volume 2 is an active DAW monitoring controller and a puristic high-end preamplifier.
The monitoring volume is controlled analogously with an Alps-RK 27 potentiometer. If the volume is controlled digitally, for example in the DA-converter, the bit resolution decreases with decreasing volume with one bit per -6dB. Usually we listen with about -30 dB at full volume, which decreases the bit resolution by 5 dB.
It is claimed that passive circuits are less signal influencing and more puristic and therefore better. Well, that is not so.
A passive control element such as a potentiometer in the signal path, which is not electronically buffered, influences the frequency response and phase position. Both change continuously as you change the volume.
Specifications

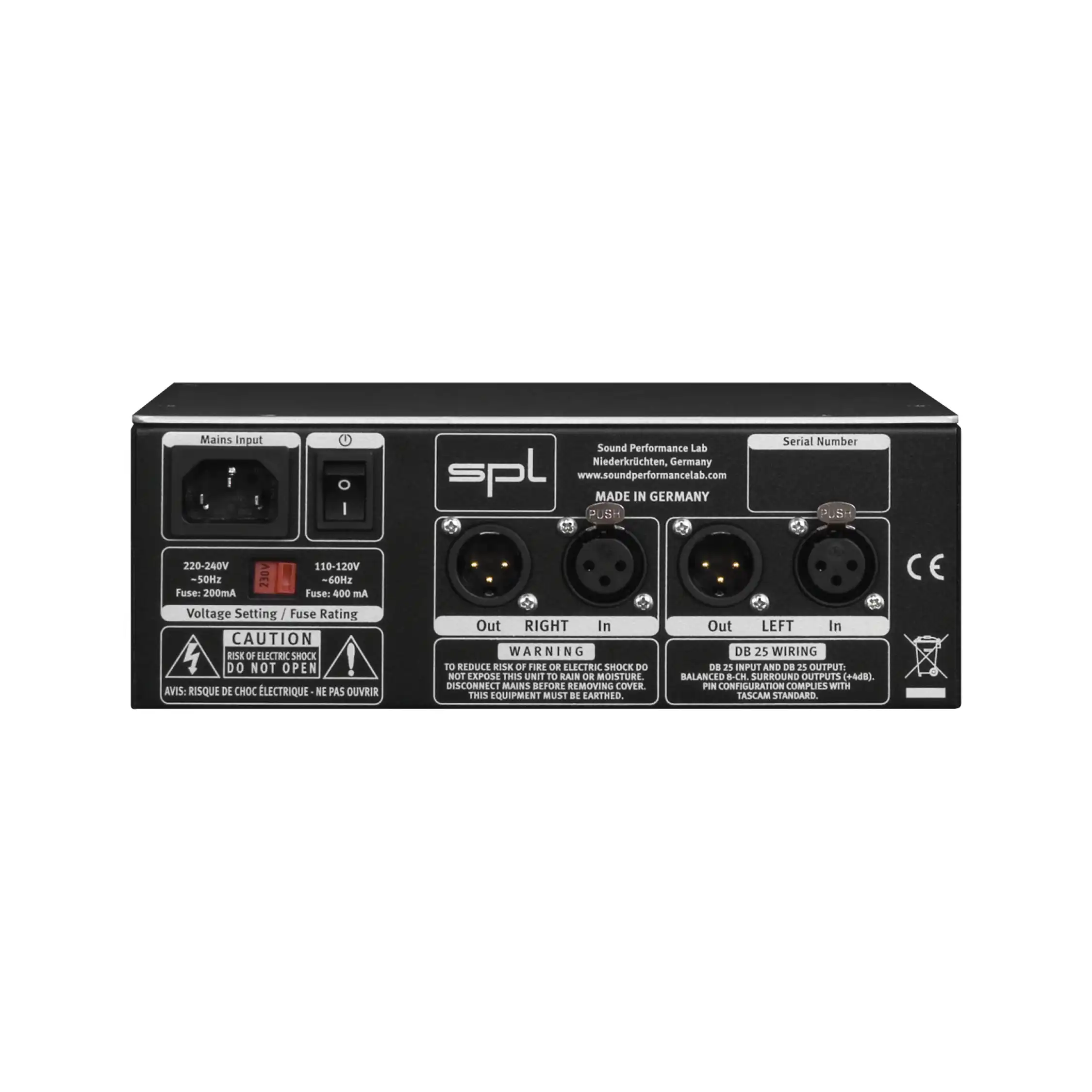

Analog inputs & outputs; XLR (balanced)
Maximum input & output gain: dBu
Input impedance: 22 kΩ
Output impedance: 100 Ω
Frequency range (-3 dB): 10 Hz – 100 kHz
THD + N (10 Hz – 22 kHz, 15 dBu): -100 dBu
Noise (A-weighted): -102 dBu
Crosstalk (1 kHz): 80 dB
Common mode rejection (1 kHz): 60 dB
Dynamic range: 123 dB
Internal Linear Power Supply with Toroidal Transformer
Operating voltage for analog audio: +/- 15 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply
Mains voltage (selectable): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 250 mA
Fuse for 115 V: T 500 mA
Power consumption: max. 15 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 215 x 91 x 220 mm (8.46 x 3.58 x 8.66 inch)
Unit weight: 1.6 kg (3.53 lbs)
Shipping weight (incl. packaging): 2.85 kg (6.28 lbs)
