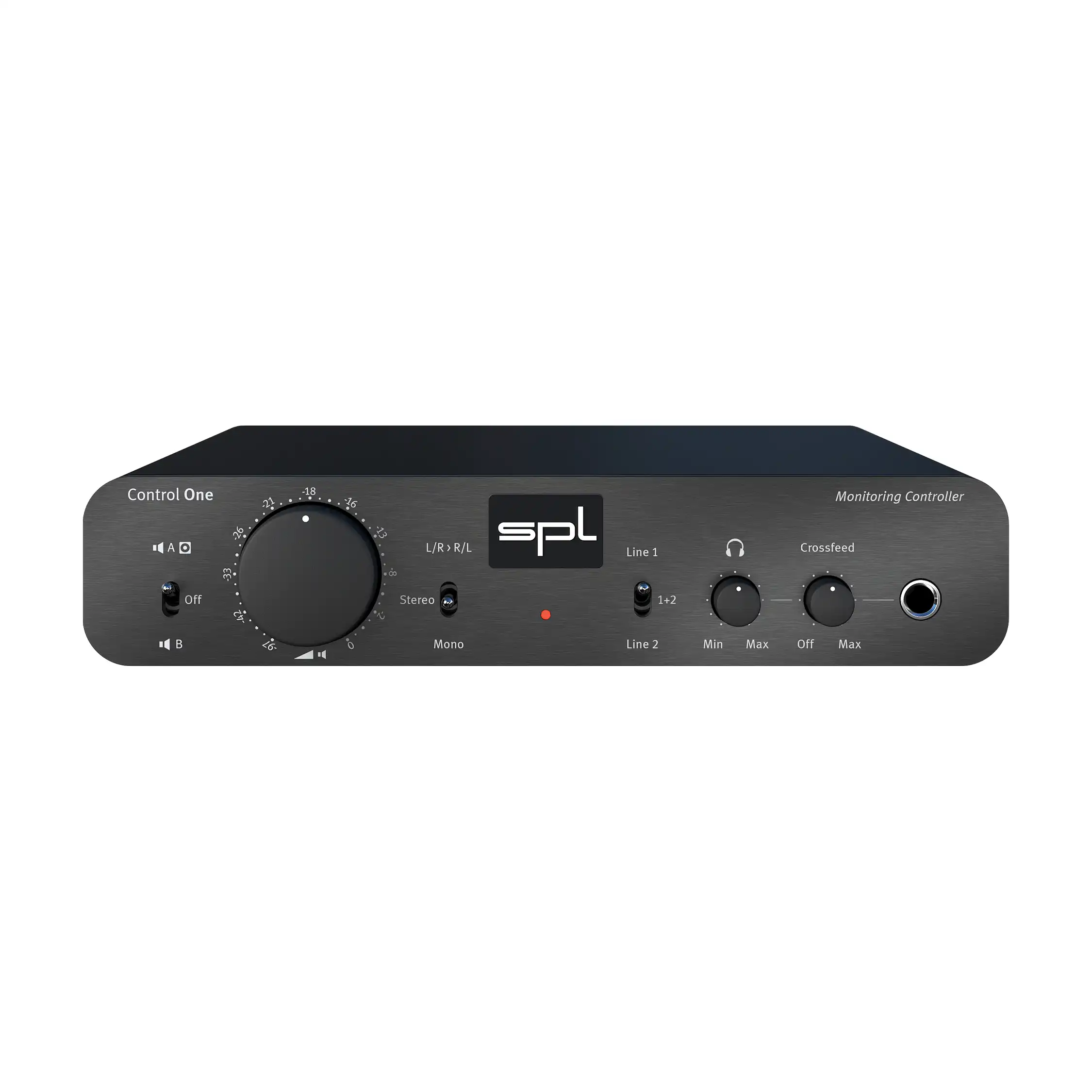

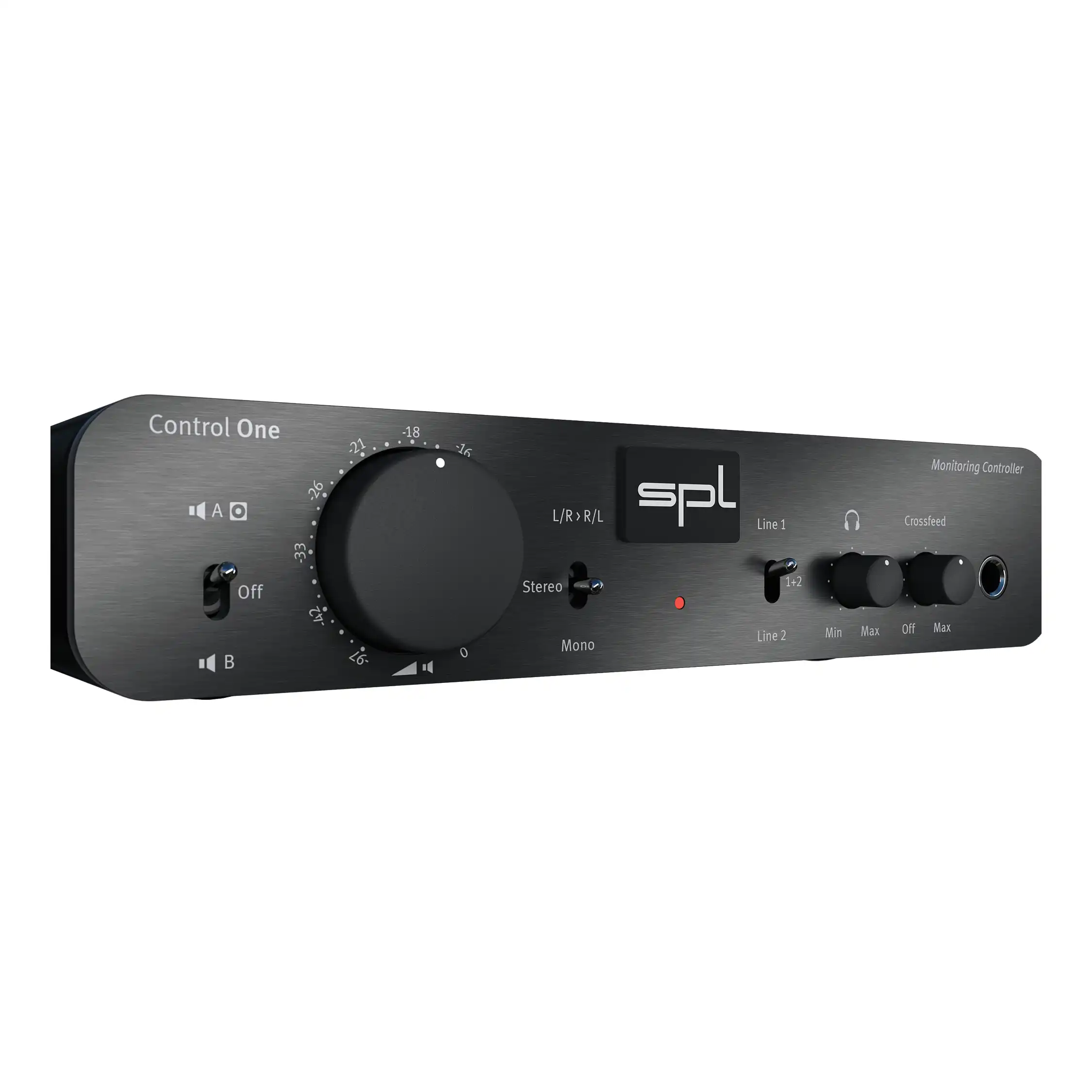

SPL Control One - Monitor kontroler
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
The Monitor Controller with innovative features, developed for fast workflow and impressive sound quality.
For us the sound is always in the foreground. When it sounds good, we like to listen. To get such a sound, you need experience and technical finesse. We have incorporated both into the Series One.
Specifications

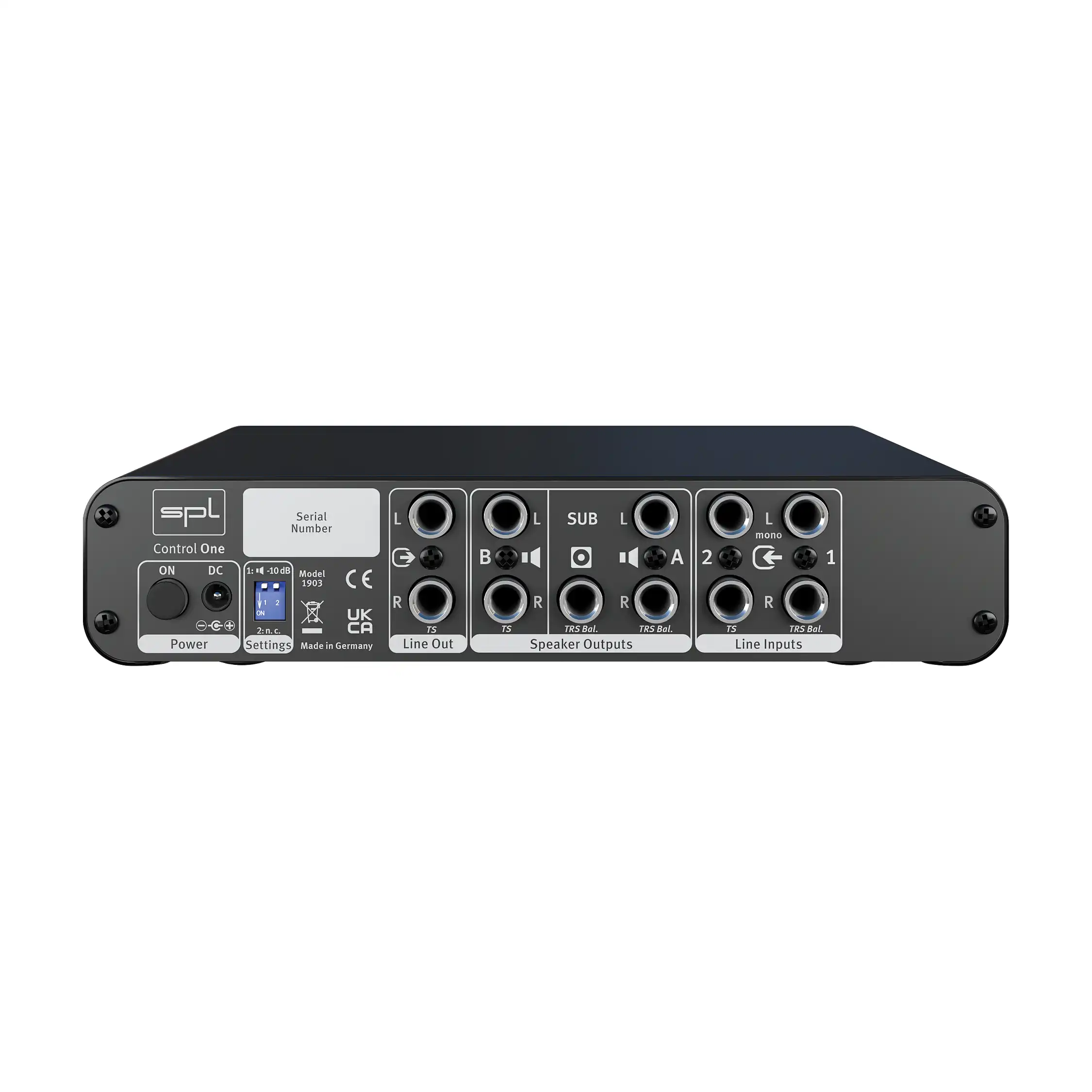

Analog inputs & outputs; 6.35 mm (1/4") TRS Jacks
Input gain (max.): +22.5 dBu
Line Input 1 (balanced): Input impedance: 20 kΩ
Line Input 1: Common mode rejection: < 60 dB
Line Input 2 (unbalanced): Input impedance: 10 kΩ
Output gain (max.): Speaker Outputs (600 Ω): +22 dBu
Line Output (unbalanced): Output impedance: 75 Ω
Speaker Output 1 (balanced): Output impedance: 150 Ω
Sub Output low filter: none (Full Range)
Sub Output (balanced): Output impedance: 150 Ω
Speaker Output 2 (unbalanced): Output impedance: 75 Ω
Frequency range (-3dB): 10 Hz - 200 kHz
Dynamic range: 121 dB
Noise (A-weighted, 600 Ω load): -99 dBu
Total harmonic distortion (0 dBu, 10 Hz – 22 kHz): 0.002 %
Crosstalk (1 kHz): < 75 dB
Fade-out attenuation: -93 dB
Headphones Output; 6.35 mm (1/4") TRS Jack
Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 20 Ω
Frequency range (-3 dB): 10 Hz - 200 kHz
Noise (A-weighted, 600 Ω): -97 dBu
THD + N (0 dBu, 10 Hz – 22 kHz, 600 Ω): 0,002 %
THD + N (0 dBu, 10 Hz – 22 kHz, 32 Ω): 0,013 %
Max output power (1 kHz, 600 Ω): 2 x 190 mW
Max output power (1 kHz, 250 Ω): 2 x 330 mW
Max output power (1 kHz, 47 Ω): 2 x 400 mW
Fade-out attenuation (600 Ω): -99 dB
Crosstalk (1 kHz, 600 Ω): -75 dB
Dynamic range: 117 dB
Internal Power Supply
Operating voltage for analog audio: +/- 17 V
Operating voltage for headphone amplifier: +/- 19 V
Operating voltage for relays and LEDs: + 12 V
Netzteil extern
AC/DC switching adaptor: Mean Well GE18/12-SC
DC plug: Innen-Pin 2,1mm (+); Außen-Ring 5,5mm (-)
Input: 100 - 240 V AC; 50 - 60 Hz; 0.7 A
Output: 12 V DC; 1.5 A
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 210 x 49.6 x 220 mm (8.23 x 1.95 x 8.66 inch)
Unit weight: 1.5 kg (3.3 lbs)
Shipping weight (incl. packaging): 2 kg (4.4 lbs)
