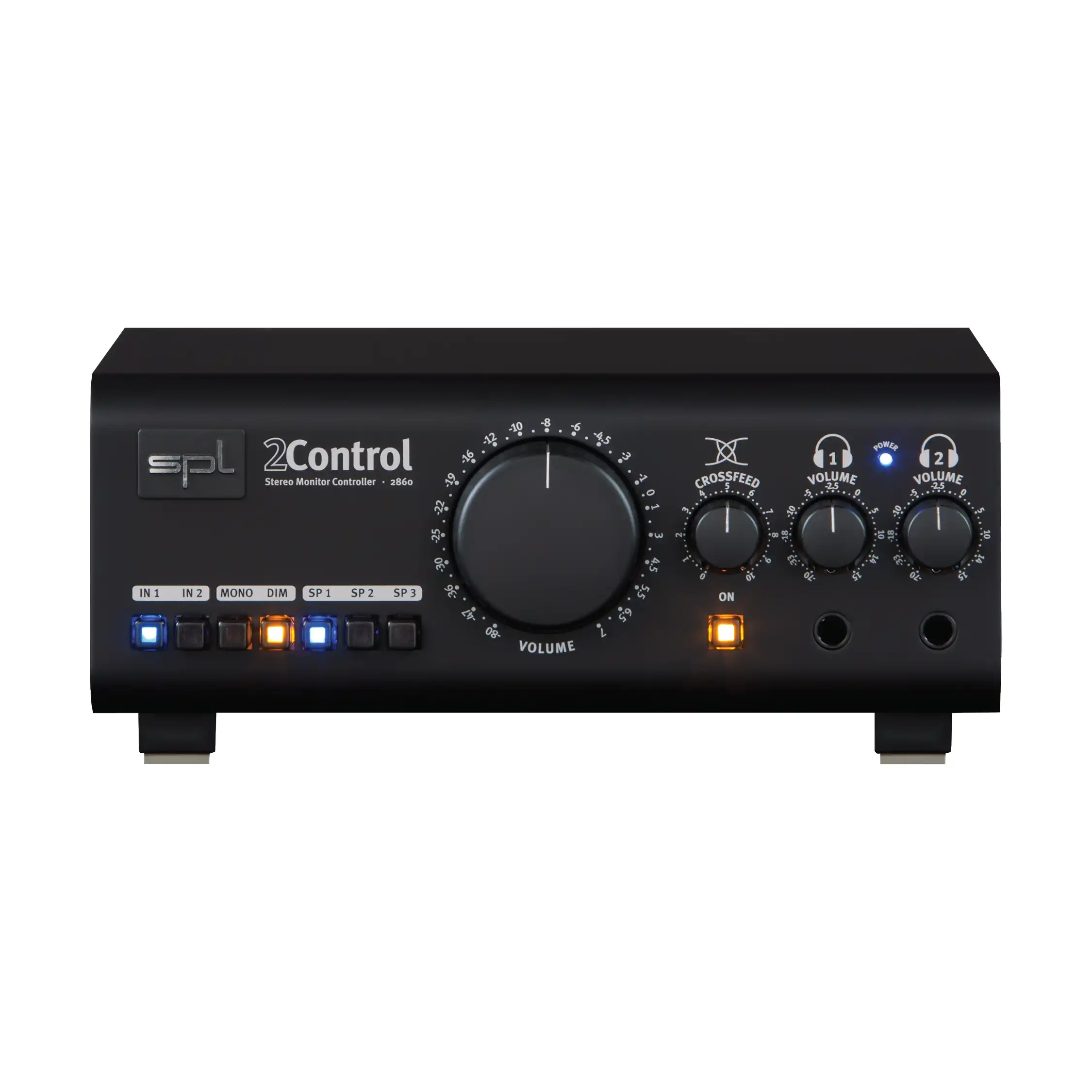

Stereo Monitor Controller
The 2Control is an excellent sounding compact monitor controller that perfectly controls your near-field and full-range monitors. It is equipped with our crossfeed control for headphone monitoring to create mixes on phones that translate on speakers.
Specifications

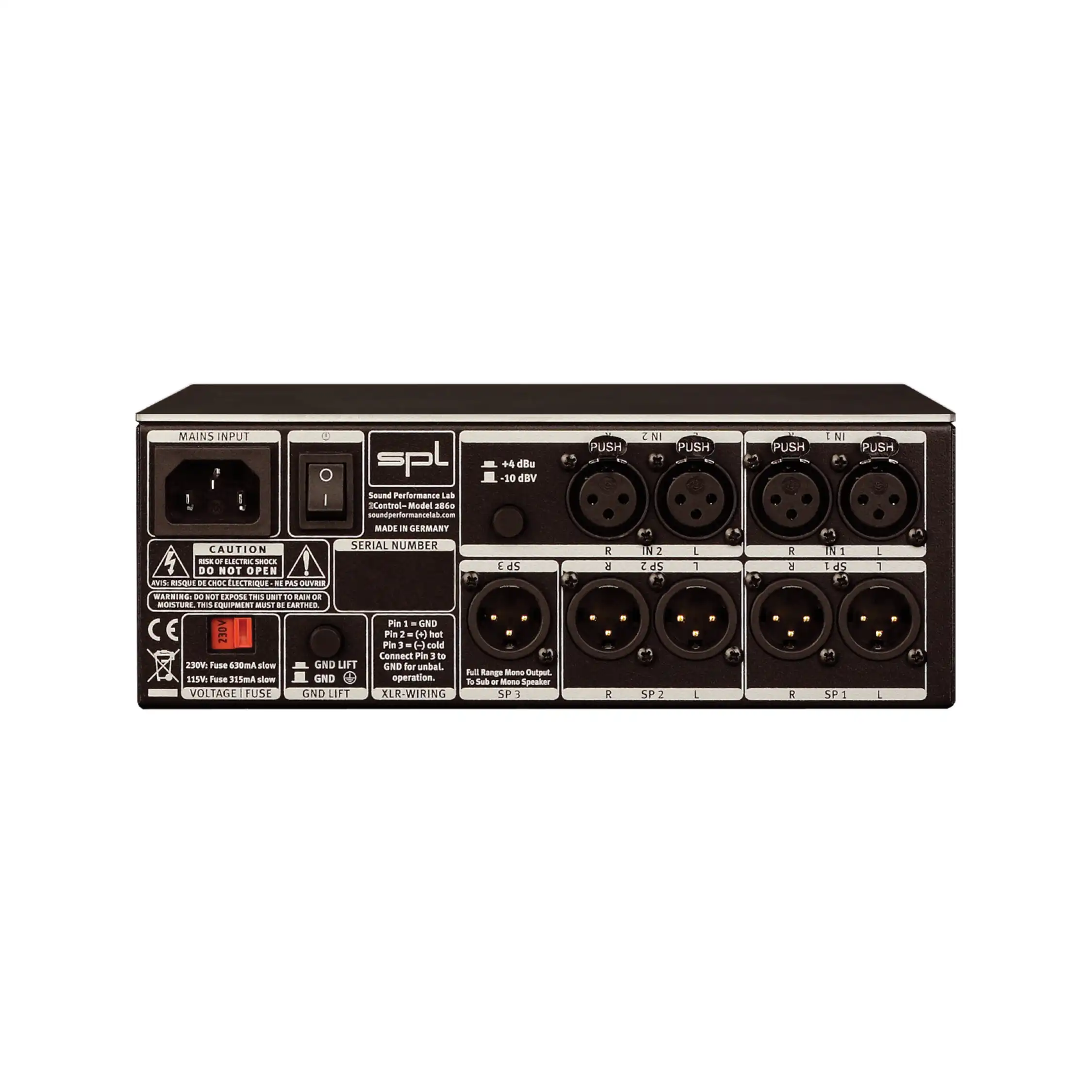

Analog inputs & outputs; XLR (balanced)
Maximum input & output gain: 21.5 dBu
Input impedance: 20 kΩ
Output impedance: 75 Ω
Frequency range (-3 dB): 10 Hz – 100 kHz
THD +N (0 dBu, 10 Hz – 22 kHz)): 0.005 %
Noise (A-weighted): -96 dBu
Crosstalk (1 kHz): -70 dB
Common mode rejection (1 kHz): 60 dB
Dynamic range: 117 dB
Standard Headphones Output, 6.35 mm (1/4") TRS Jack
Wiring: Spitze = links, Ring = rechts, Schaft = GND
Source impedance: 22 Ω
Noise (A-weighted, 600 Ω): -85 dBu
Internal Linear Power Supply with Toroidal Transformer
Operating voltage for analog audio: +/- 15 V
Operating voltage for relays and LEDs: + 12 V
Mains Power Supply
Mains voltage (selectable): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 315 mA
Fuse for 115 V: T 630 mA
Power consumption: max. 10 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 215 x 100 x 220 mm (8.46 x 3.58 x 8.66 inch)
Unit weight: 2.1 kg (4.63 lbs)
Shipping weight (incl. packaging): 4 kg (8.82 lbs)
