120W - 119,5DB SPL SOUND REINFORCEMENT MONITOR

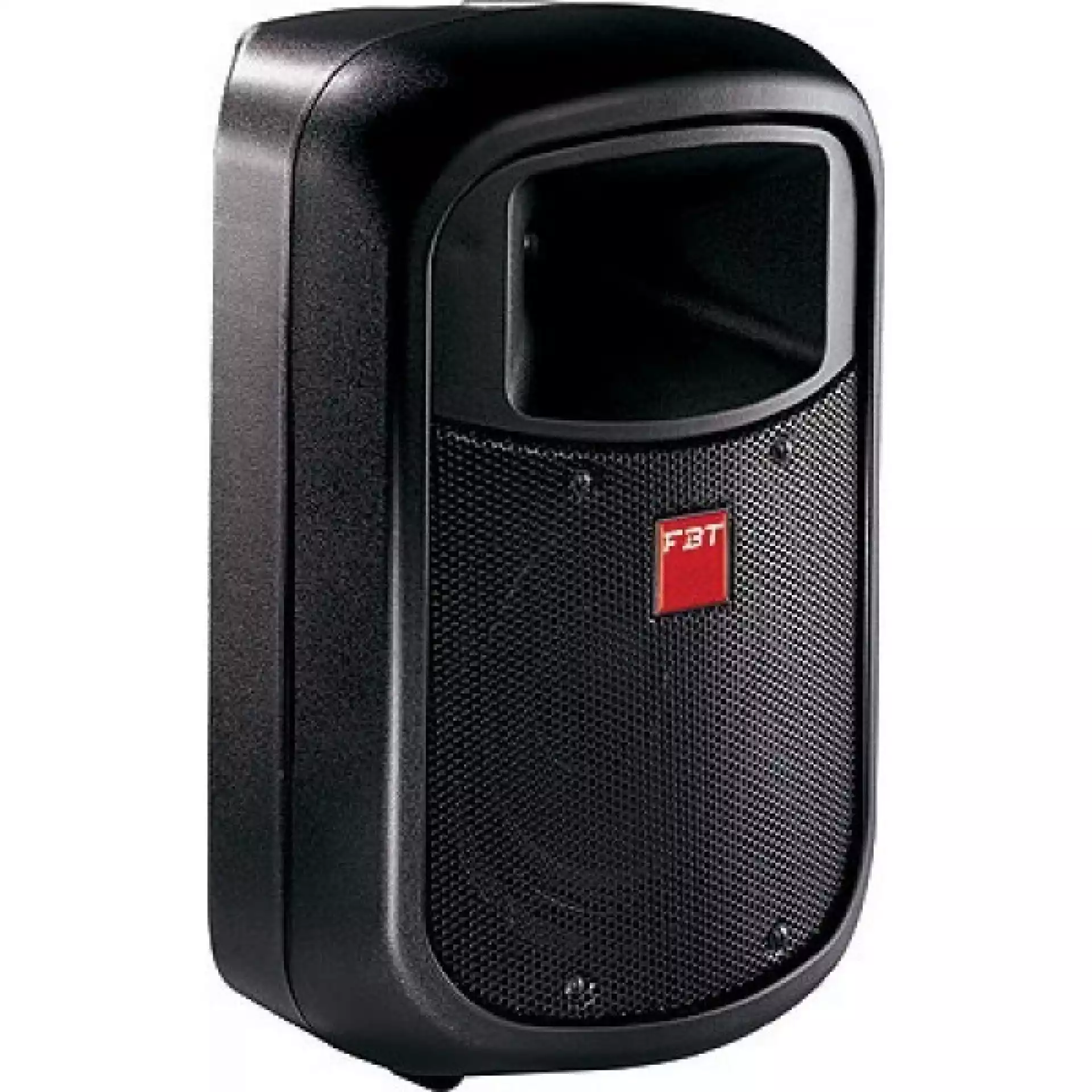

Jolly 8R / Sound Reinforcement Monitor 120W
120W - 119,5DB SPL SOUND REINFORCEMENT MONITOR
Features
- 2-way passive bass-reflex speaker system with 320 mm woofer and 25 mm high frequency unit
- Extremely light and sturdy enclosure made of gas injection moulded polypropylene
- Integral handle, stand adapter, 2 M10 anchoring points and a comprehensive range of accessories for fixed installations
- Custom 90° x 60° dispersion horn
- Asymmetrical trapezoidal shape for use as a stage monitor
- Enormous application versatility: band P.A.s, piano-bars, stage monitoring and fixed installations in live music club venues, pubs, gyms, conference rooms and wherever excellent speech intelligibility is a primary requirement
- Custom 320 mm high efficiency high excursion woofer
- Custom 25 mm compression tweeter
- Internal Crossover with very high quality components and designed for the utmost resistance to vibration
- Drivers protected against overload and acoustic feedback
- Flat frequency response over the entire dispersion angle
- Recommended amplifier 120W/8 Ohm
- SPL 116.5/119.5 dB
- Inputs panel with 2 Neutrik™ Speakon NL-4 connectors and links
Download PDF drawing
Download datasheet
Download user manual
Specifications
|
Configuration |
way |
2 |
|
Recommended amplifier |
W rms |
120 |
|
Short term power (IEC 268-5) |
W |
240 |
|
Nominal impedance |
Ohm |
8 |
|
Frequency response |
@-6dB |
80Hz -20kHz |
|
Low frequency woofer |
inch |
1x10" - 1,5" Ø coil |
|
High frequency driver |
inch |
1x1" + horn - 1" Ø coil |
|
Sensitivity (@1W/1m) |
dB |
95,5 |
|
Maximum SPL |
dB |
116,5/119,5 |
|
Dispersion |
H x V |
90° x 60° |
|
Crossover frequency |
kHz |
3,5 kHz |
|
Recommended HP filter |
|
60Hz - 24dB oct |
|
Recommended external filter |
|
… |
|
Input connectors |
|
1 x jack |
|
Net dimensions (WxHxD) |
mm |
255x415x245 |
|
Net weight |
kg |
4,8 |
|
Shipping dimensions(WxHxD) |
mm |
330x480x320 |
|
Shipping weight |
kg |
5,8 |
