APPLICATIONS

Live Sound P.A. System
Live Sound Monitor
D.J. System
School & Corporate Audio Visual Sound Reinforcement
Background Music/Announcement: Restaurants, Pubs
Transportation Terminals
Clubs
Auditoriums
Theatres
Gyms
Houses of Worship

FEATURES

Extra Lightweight Polypropylene Cabinet, 27.55 lbs.
Power Handling: 250W RMS @ 8 Ohms.
10” LF woofer with 2” voice coil
1" throat exit B&C HF compression driver.
Input panel with 2 x Neutrik Speakon NL- 4 IN and LINK.
One integrated handle and Stage Floor Monitor taper.
Multiple mounting options: 1.38" top-hat speaker stand socket, wall
bracket mount flange plate, two M10 suspension points.
Optional Carrying Bag available for protection for portable use
Completely Manufactured in Italy
Low Frequency Woofer

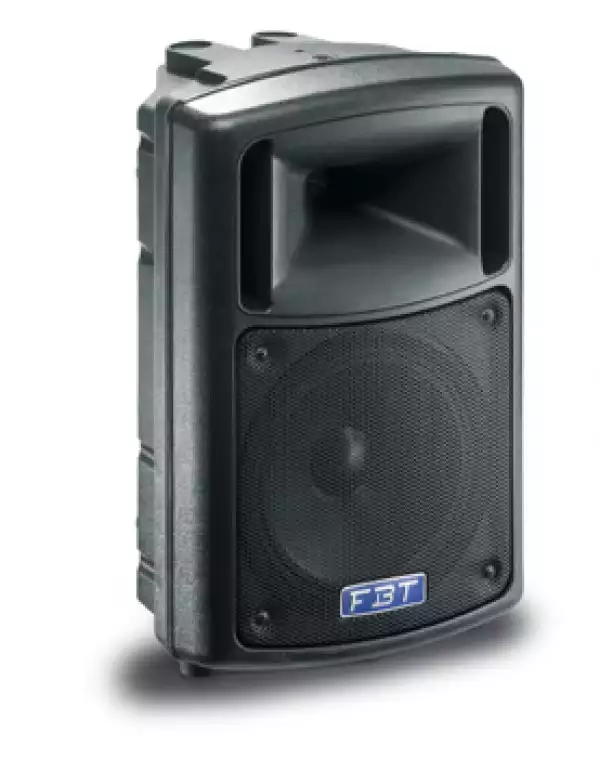

The EVO²MaxX 2 passive speaker features lightweight, yet rugged gas injected molded polypropylene cabinet
construction. The asymmetrical shape of the EVO²MaxX 2 cabinet also allows use as a floor stage monitor. The
EVO²MaxX 2passive speaker is a two way design incorporating a 10” custom made for FBT low frequency woofer with
2” voice coil and a 1” throat exit B&C HF compression driver coupled to a 90°H x 60°V constant directivity horn . The
internal passive crossover filter with soft/trip protection circuits on woofer and compressor driver is at a fixed frequency
of 1.8kHz. With a frequency range of 60Hz-18kHz, the EVO²MaxX 2 provides hi fidelity sound for both speech and
music applications with a maximum SPL of 125dB. A front face steel grille protects the woofer from external damage.

The rear input panel features 2 Neutrik NL-4 Speakon input and link to allow daisy chaining an additional EVO²MaxX 2
speaker. The two M10 fly points built into the cabinet, along with the optional Box 102 mounting brackets allow
theEVO²MaxX 2speakers to be surface mounted on walls or ceilings. Astandard 1,38” speaker stand socket allows the
EVO²MaxX 2to be mounted on speaker stands.
