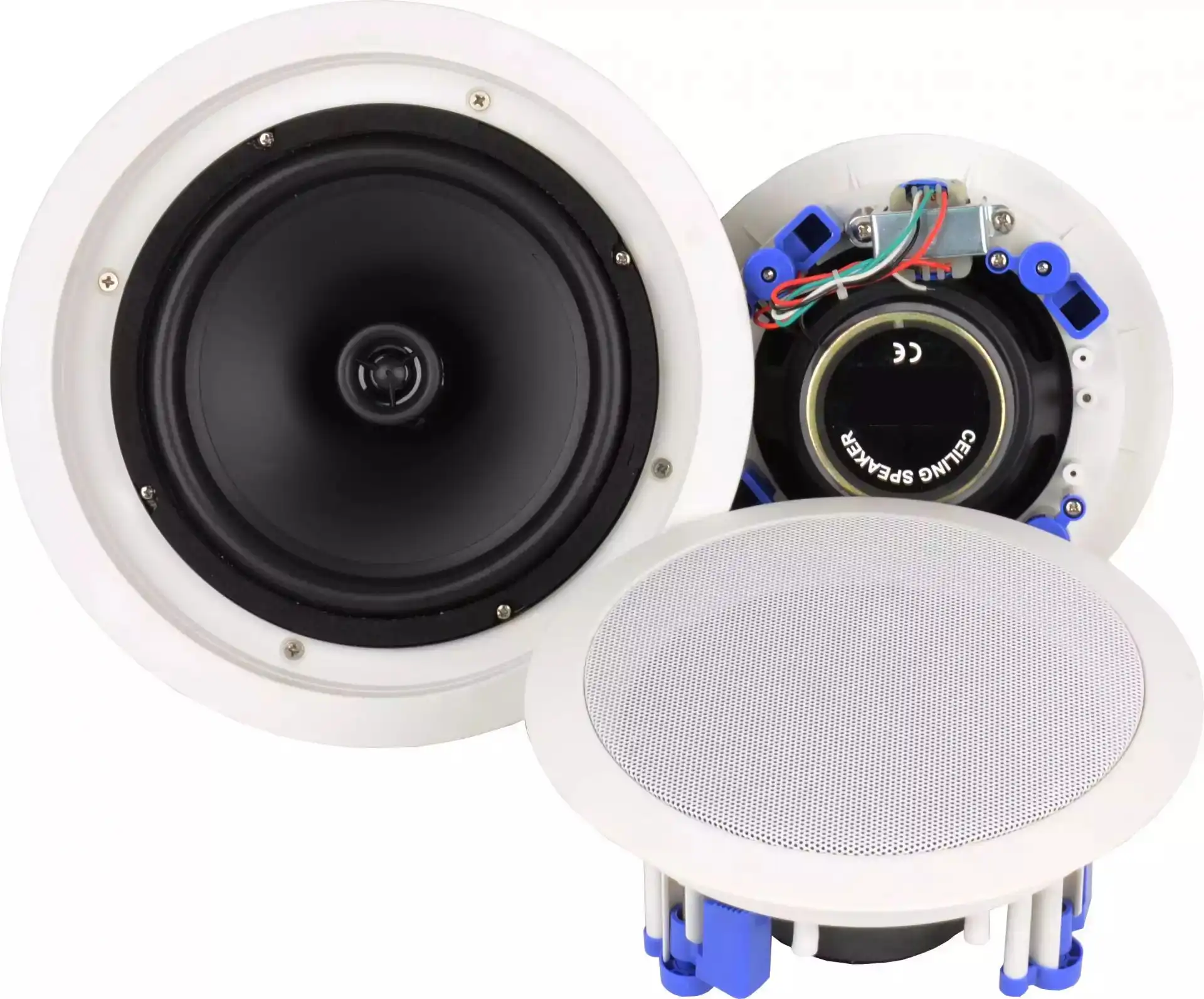

MARTIN WISMAN MZX-840 - plafonski ugradbeni zvučnik
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
This model series has a high –quality 2 ways coaxial speaker this 2ways coaxial speaker has a very wide band basic membrane with a separate high toner integrated .
This coaxial speaker fulfills the professional demand for sound pressure and tone reproduction
Maximum capacity 50W
A high quality matching 100v transformer or 12db Crossover suppliers best music and speech quality
This speaker has the most modern and easy fitting method a quick fastening clasp
It sets new standards in security and easiness
Four screws to mount or dismount and lifting off the grille (with a screwdriver) is all that is necessary
Modern ,discreet design with a rim height of approx 2mm

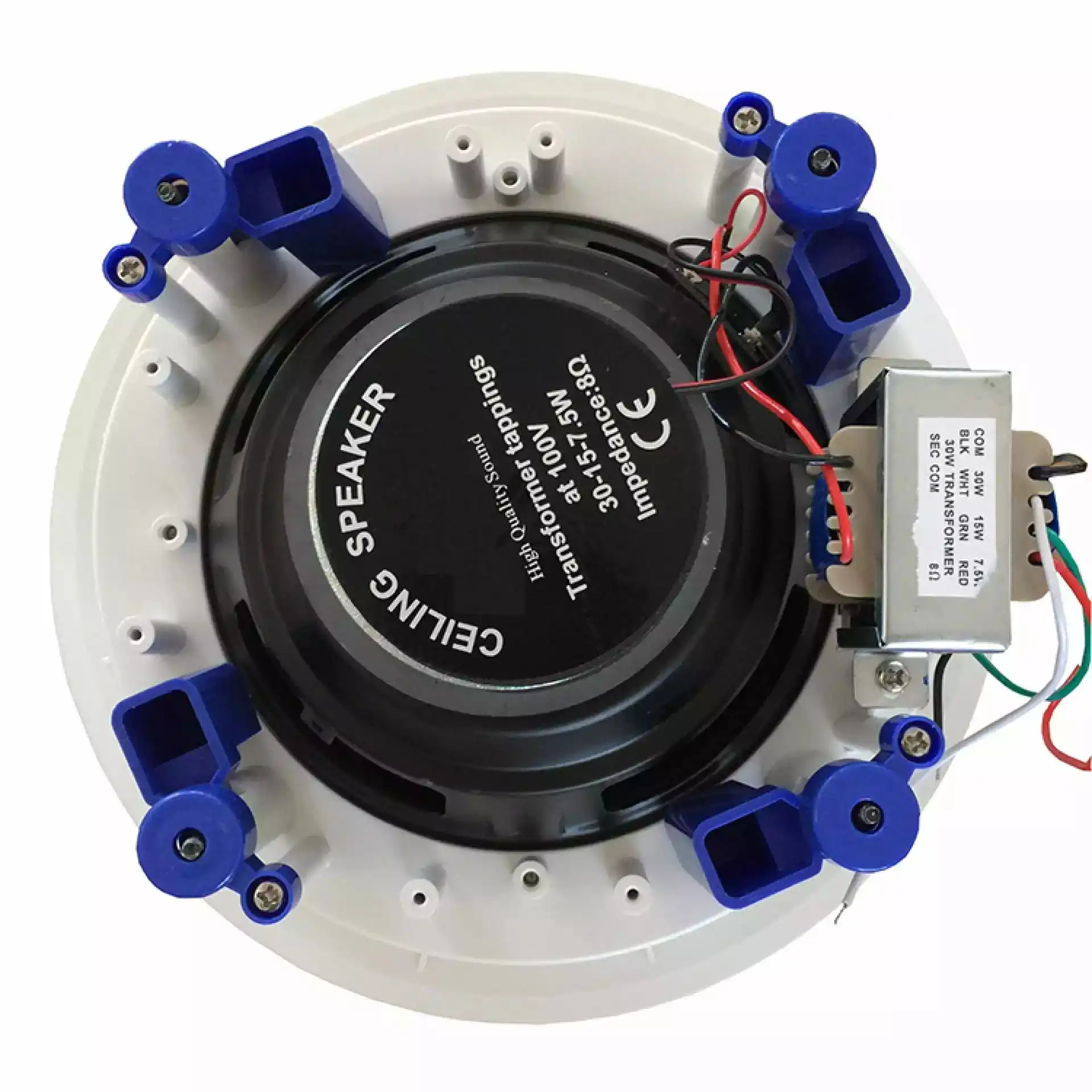

The speaker is available impregnated ,with a specially prepared chassis and matching transformer

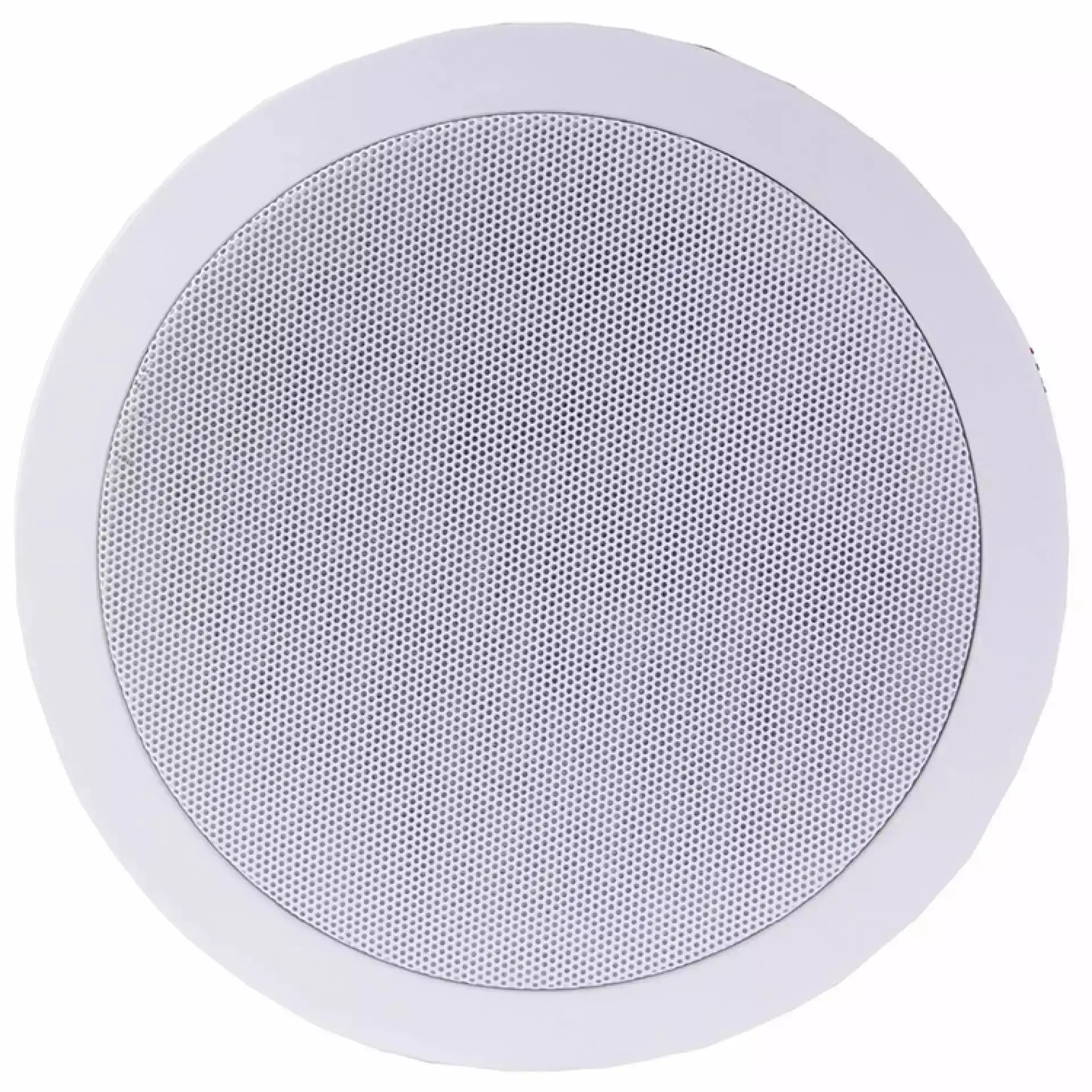

With frameless grills and high magnetism grilles on the top of speaker
For those of high end quality ceiling speaker with hifi sound range for 12db crossover build
And 100v line transformer with 8ohm to select the power for ohms or volts
|
Technical data |
MZX 520 |
MZX 630 |
MZX840 |
|
Load rating |
20W |
30W |
40W |
|
Transformer tappings |
20-10-5W |
30-15-7.5W |
40-20-10W |
|
Frequency range |
70-20KHz |
50-20KHz |
40-20KHz |
|
SPL(@1W/m) |
88dB |
90dB |
92dB |
|
Speaker Ø and Impedance |
5 1/4”, 2-way |
6 1/2” ; 2-way |
8” , 2-way |
|
Dimension Ø,Install depth |
Ø202(78)mm |
Ø238(86)mm |
Ø276(93)mm |
|
Install dimension |
Ø166mm |
Ø202mm |
240 mm |
|
Material, Colour |
ABS white |
ABS white |
ABS white |
