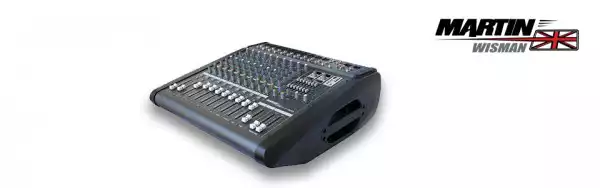

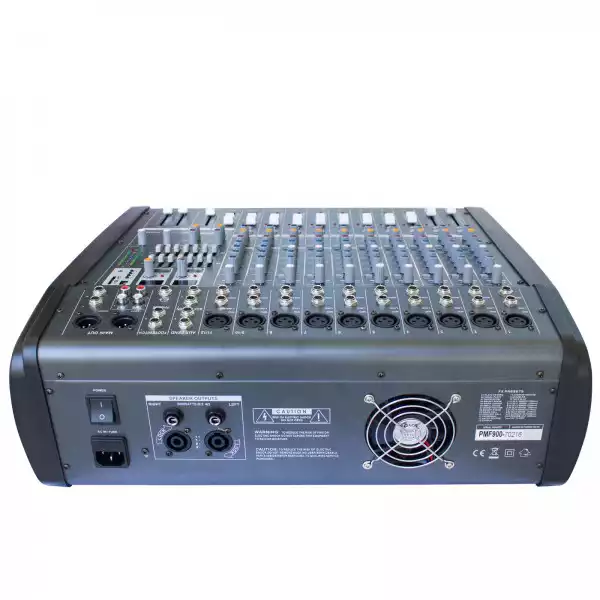

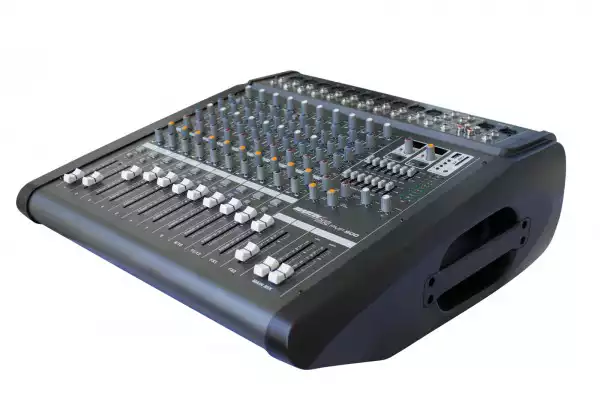

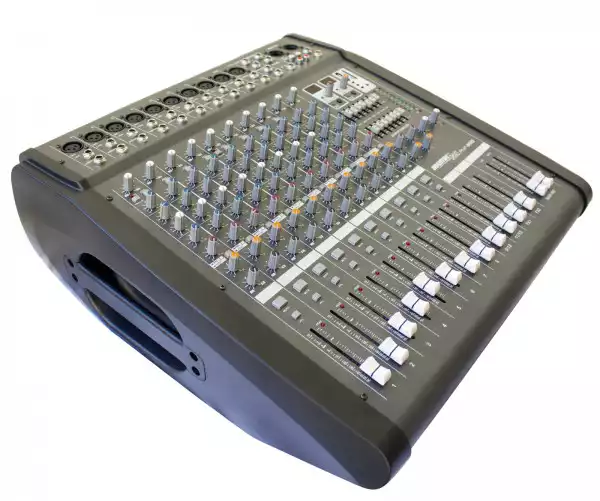

Martin Wisman PMF 900
Professional Power Mixer 12 Channels, 2x 500W, 4 Ohm, FX, with 2 effects
12 Mono Input Channels with silver plated XLRs and balanced Line Inputs
Ultra-low noise discrete Mic Preamps with +48 V Phantom Power
2 Stereo Input Channels with balanced TRS Jacks
Balanced Inputs for highest signal integrity
Ultra-musical 3-band EQ and FREQ on all MONO channels and 4-band EQ on all stereo channels
Peak LEDs all mono and stereo Channels
2 Aux Sends per channel for external effects and monitoring
2X24DSP digital effect and USB / SD CARD MP3 playing system
2-Track Inputs assignable to Master Mix Output
Spearate master output, monitor output and headphone outputs
Highly accurate 2x10 segment Bargraph Meters
Rugged design Power Supply ensures superior signal integrity
Martin Wisman PMF 900
Professional Power Mixer 12 Channels, 2x 500W, 4 Ohm, FX, with 2 effects
- 12 Mono Input Channels with silver plated XLRs and balanced Line Inputs
- Ultra-low noise discrete Mic Preamps with +48 V Phantom Power
- 2 Stereo Input Channels with balanced TRS Jacks
- Balanced Inputs for highest signal integrity
- Ultra-musical 3-band EQ and FREQ on all MONO channels and 4-band EQ on all stereo channels
- Peak LEDs all mono and stereo Channels
- 2 Aux Sends per channel for external effects and monitoring
- 2X24DSP digital effect and USB / SD CARD MP3 playing system
- 2-Track Inputs assignable to Master Mix Output
- Spearate master output, monitor output and headphone outputs
- Highly accurate 2x10 segment Bargraph Meters
- Rugged design Power Supply ensures superior signal integrity
Specifications
Mono Inputs
Frequency response: 20Hz-20Khz, +1,0, -1dB (MIX L/R, AUX/EFX SEND) @+4dBu
Distortion (THD & N): less than 0.1% (THD+N) 20Hz-20kHz@+4dBu
Hum and Noise (Average, Rs=150 Ohm) -132 dBu Aux, Mix and Master (@0dB, faders down)
-130 dBu equivalent input noise
-98 dBu residual noise
TRIM range: (-50dB do -10dB), (-30dB do +10dB)
Cross talk (@ 1kHz) -80dB between inpu channels; -80dB channel Mute
Equalization
Hi Shelving: 12 kHz +/-15 dB
Mid Range: 2.5 kHz +/-15 dB
Lo Shelving: 80 Hz +/-15 dB
Stereo inputs
Line Input: unbalanced
Frequency response: less than 0.1% (THD+N) 20Hz-20kHz@+4dBu
Equalization
HIGH 12KHz shelving
HIGH MID 3KHz peaking
LOW MID 500Hz peaking
LOW 80Hz shelving
LOW Cut (High pass) filter -3dB na 100Hz 12dB/oct
Master Mix section
Max Output: +22 dBu
Aux Send Out: +22 dBu
Headphones (@150Ohm): +22 dBu
Input and Output impedances
Line input: 10K
Mic input: 1.8K
Mix Output: 120 Ohm
Power supply
Mains Voltages AC 120V 60Hz or 230V 50Hz
Weight: 14.5kg
Packed weight: 16kg
