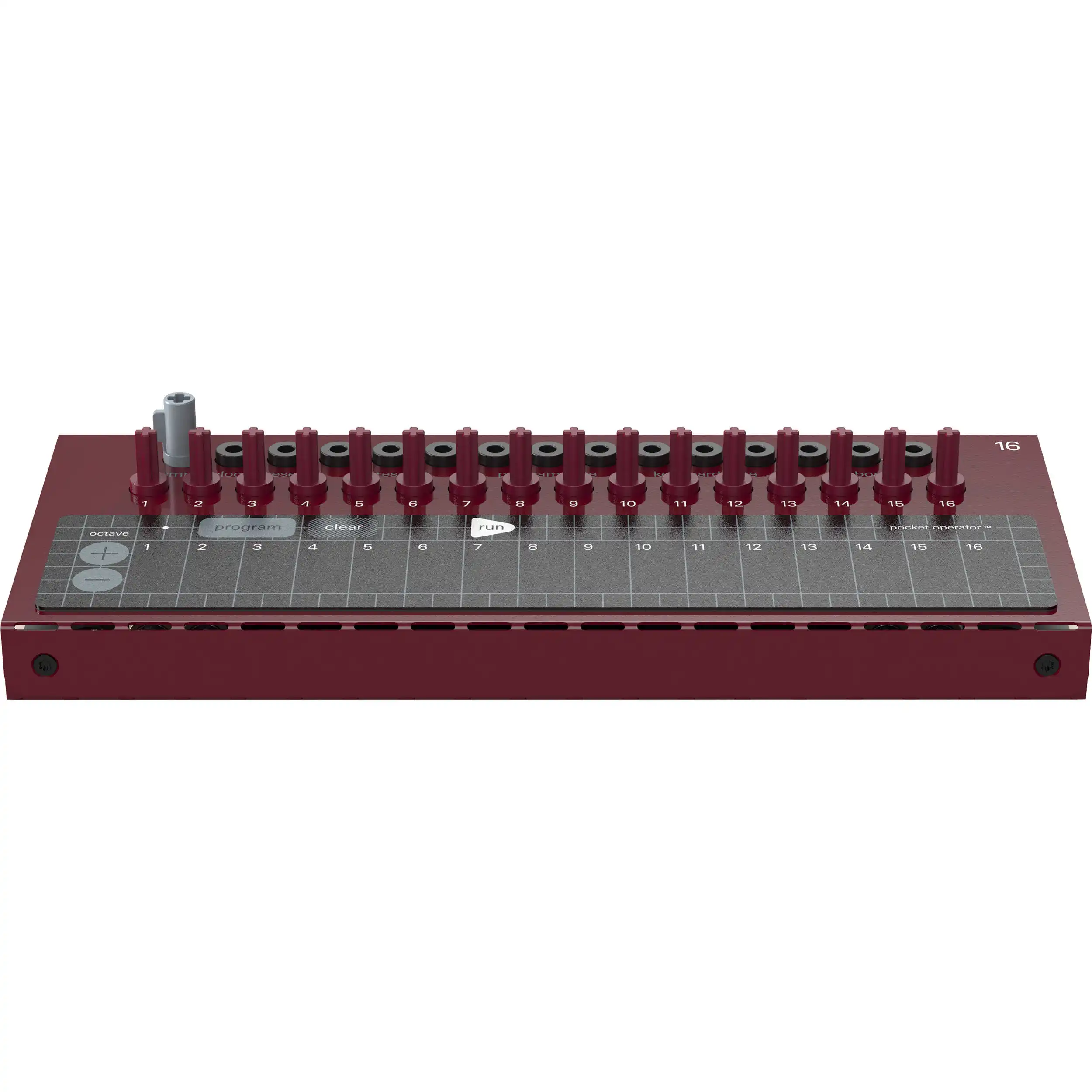

The Teenage Engineering Pocket Operator Modular 16 is a standalone keyboard kit featuring individual tunable keys and a programmable step sequencer designed to control the Modular 400 or other Eurorack modular systems. This kit includes a metal chassis, keyboard, 16 trim knobs, a value knob, four rubber feet, chassis screws, and a screwdriver. The included manual guides you through the process of assembly.
The Modular 16's sequencer features 16 slots, 4 tracks per slot, and 1 pattern per track. Store up to 64 independent patterns, and each pattern can be up to 64 steps long. Each of the 16 slots are labeled by the numbers 1-16, which also represent keys on the keyboard. The 4 tracks are labeled T1-T3, as well as TK, where K stands for keyboard. Play notes and program patterns using the keyboard and use the knobs to control CV. Patch the CV/gate outputs to your other operator modular units or to any other compatible device. Additionally, a PO Sync output is available to synchronize pocket operators, as well as MIDI output, which can control MIDI gear.
Teenage Engineering 16 Specs
Keyboard & Controllers Membrane Keyboard Controller with 16 Notes
16 x CV Knobs (Each Note is Tunable)
Inputs and Outputs Clock Input: 1/8" / 3.5 mm
Rest Input: 1/8" / 3.5 mm
T1 CV Out: 1/8" / 3.5 mm
T2 CV Out: 1/8" / 3.5 mm
T3 CV Out: 1/8" / 3.5 mm
T1 Gate Out: 1/8" / 3.5 mm
T2 Gate Out: 1/8" / 3.5 mm
T3 Gate Out: 1/8" / 3.5 mm
TK Gate Out: 3 x 1/8" / 3.5 mm
TK CV Out: 3 x 1/8" / 3.5 mm
FX FX1: Short
FX2: Chop
FX3: Legato
FX4: Glide
Arpeggiator 16 Types: Up, Down, Up and Down, Ping-Pong, Ordered, Ordered and Back, Up Double, Down Double, Up and Down Double, Ordered Double, Duplicate Octave Up, Duplicate Octave Down, Octave Up and Down, Octave Down and Up, Random, and Random
Swing Range 50% to 75%
Clock External Clock Tempo
Clock Divider (1/4, 1/2, 1/1)
Clock Input Pulse Range: 12.5 ms to 1.5 sec
Notes Note Length: 256 Ticks per Step Are Possible
Default: 3 Ticks per Step
Minimum: 1 Tick
Maximum: 256 Ticks
Notes Will Jump between Each Other Until the Initial Note is Finished
Scales Natural: White Piano Keys
Accidental: Black Piano Keys
Chromatic: Both White and Black Keys
Arabic: A Type of Arabic Scale
Dimensions 8.4 x 3.6 x 0.7" / 21.4 x 9.2 x 1.8 cm
Packaging Info
Package Weight 1.615 lb
Box Dimensions (LxWxH) 10.7 x 7.8 x 1.5"
