SYSTEM REQUIREMENTS
STANDALONE MODE
You can use MASCHINE+ without a computer, but you’ll need a wireless internet connection and your Native ID to get set up.

CONTROLLER MODE
macOS 12, 13, 14 (latest update)
Windows 10 (64-bit, latest Service Pack) or Windows 11 (latest Service Pack)

Intel Core i5 or equivalent CPU, or Apple Silicon (native mode or using Rosetta 2), 4 GB RAM (6 GB recommended)

Find out more about Apple Silicon compatibility

Additional Requirements:
USB 2.0 Port, 9 GB free disk space for MASCHINE software and MASCHINE Library, 24 GB free disk space for MASCHINE+ Selection.
Supported Interfaces: Stand-alone, VST, VST3, Audio Units (64-bit), AAX 64, ASIO, CoreAudio, and WASAPI. Please note: Native 64-bit support for stand-alone and plug-in versions.
MASCHINE requires activation: Activate using the serial number on the bottom of the unit. In case of graphics issues, please install the latest drivers for your GPU. This can be necessary even if Windows reports them as up to date.
MASCHINE software, MASCHINE Factory Library, instruments, effects, and sound content are provided as downloads after hardware registration – an internet connection and a graphics card which supports OpenGL 2.1 or higher are required for initial download and activation of MASCHINE software.

DIMENSIONS AND WEIGHT
Dimensions: 322 x 301 x 51 mm / 12.68'' x 11.85'' x 2.01''
Weight: 2.50 kg / 5.51 lbs

FEATURES AND SPECIFICATIONS
• Immersive standalone workflow for creating beats and melodies, sampling, arranging music, and performing on stage or in the studio
• Includes MASCHINE+ Selection with industry-leading instruments, sounds, and effects, plus renowned MASCHINE drum and bass synth plugins and effects
• Quad-core CPU and 4 GB RAM for fast, seamless creation when it counts

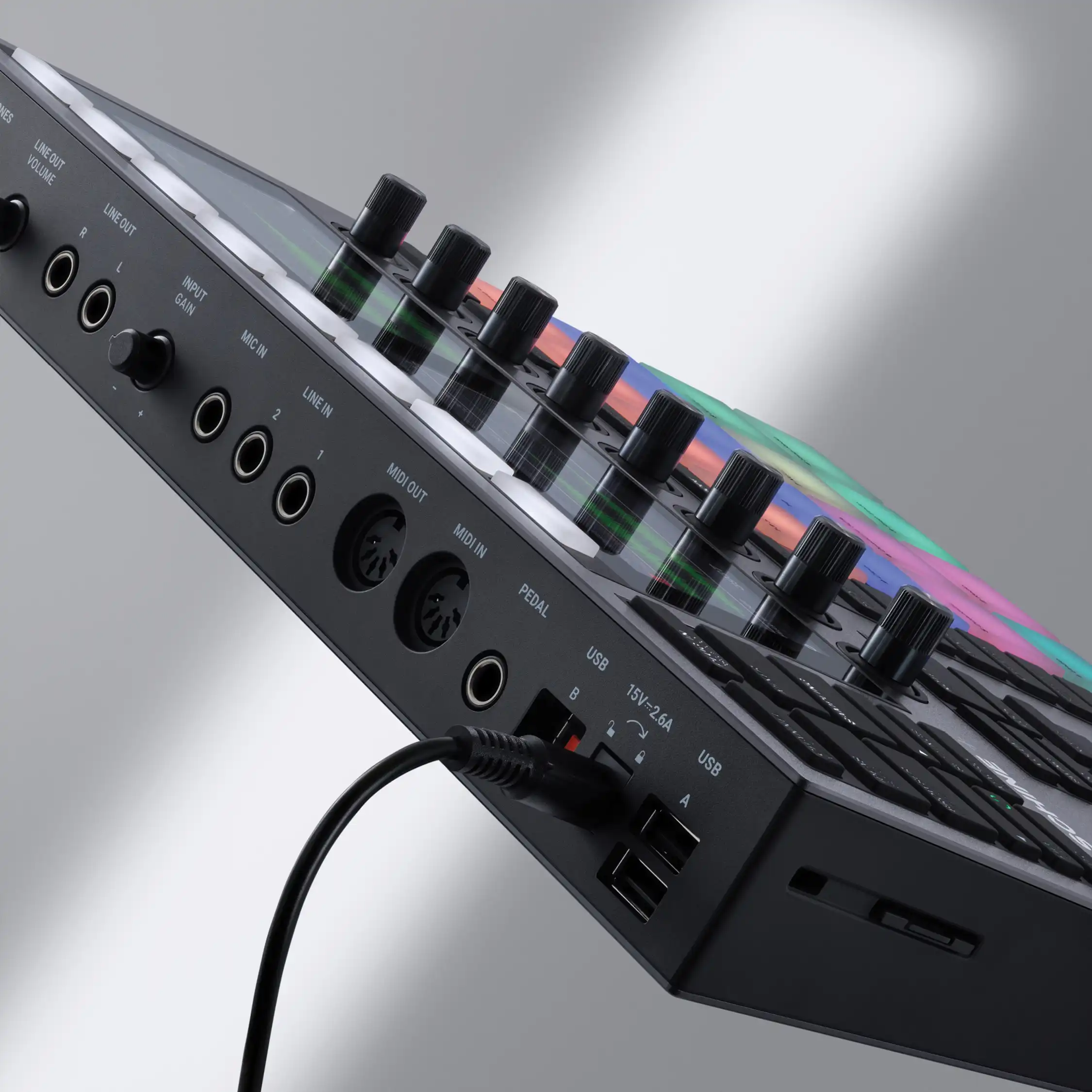

• Pro-grade, 44.1 kHz / 24-bit audio interface* with 2 x ¼” TRS line outputs, 2 x ¼” TRS line inputs, ¼” dynamic mic input, stereo headphone output, 1 x MIDI In, 1 x MIDI out; 1 x Footswitch, 2 x USB ports for MIDI controllers
• Robust, anodized aluminium design for years on the road and in the studio
• Iconic MASCHINE features and workflow including 16 velocity-sensitive pads, MASCHINE effects and plugins, swing, pad link, note repeat, step sequencer, and vintage sampler emulation
• Use standalone or with a computer – integrate with your studio workflow, and unplug for DAW-less setups or live performances
• WiFi and Link enabled for wirelessly installing and updating products, collaborating with others, and syncing with other gear
* 96 kHz / 24-bit in controller mode

UNDER THE HOOD
• Quad-core processor
• 4 GB dual channel DDR3L RAM
• 32 GB internal eMMC flash storage (for OS and factory content)
• 2 x color displays (480 x 272)
• 64 GB SD card included (supports up to 1 TB)
(Also expandable via USB for larger libraries)

AUDIO INTERFACE SPECIFICATIONS
Line-In
Full Scale Level: +18,6 dBu
Dynamic Range: 100 dB
THD+N: 0.003 %
Frequency Response: 20Hz-20kHz +/- 0.1 dB
Crosstalk L/R: -96 dB

Mic Input (max gain)
Full Scale Level: -32 dBu
Dynamic Range: 90 dB
THD+N: 0.01 %
Frequency Response: 20Hz-20kHz +/- 0.4 dB

Mic Input (min gain)
Full Scale Level: -3.4 dBu
Dynamic Range: 102 dB
THD+N: 0.004 %
Frequency Response: 20Hz-20kHz +/- 0.15 dB

Line Out
Maximum Output Level: +18.0 dB
Dynamic Range: 102 dB
THD+N: 0.003 %
Frequency Response: 20Hz-20kHz +/- 0.5 dB
Crosstalk L/R: -100 dB

Headphone Out
Maximum Output Level: 29.4 mW @ 33 Ohm load
Dynamic Range: 102 dB
THD+N: 0.007%
Frequency Response: 20Hz-20kHz +/- 0.35 dB
Crosstalk L/R: -60 dB
