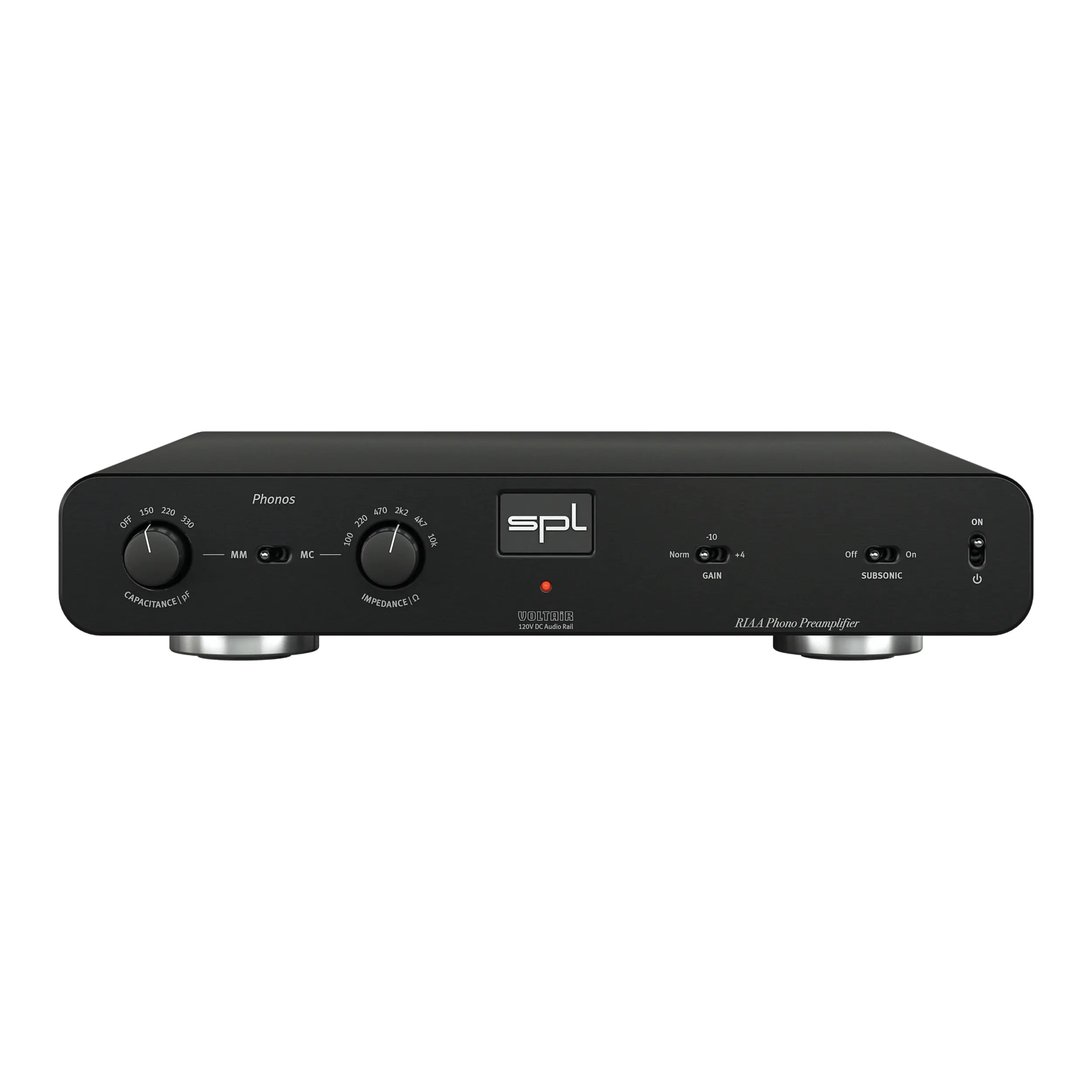

The RIAA Phono Preamplifier
This phono preamplifier for Moving Magnet (MM) and Moving Coil (MC) pickup systems is based on the legendary Douglas-Self-Design.

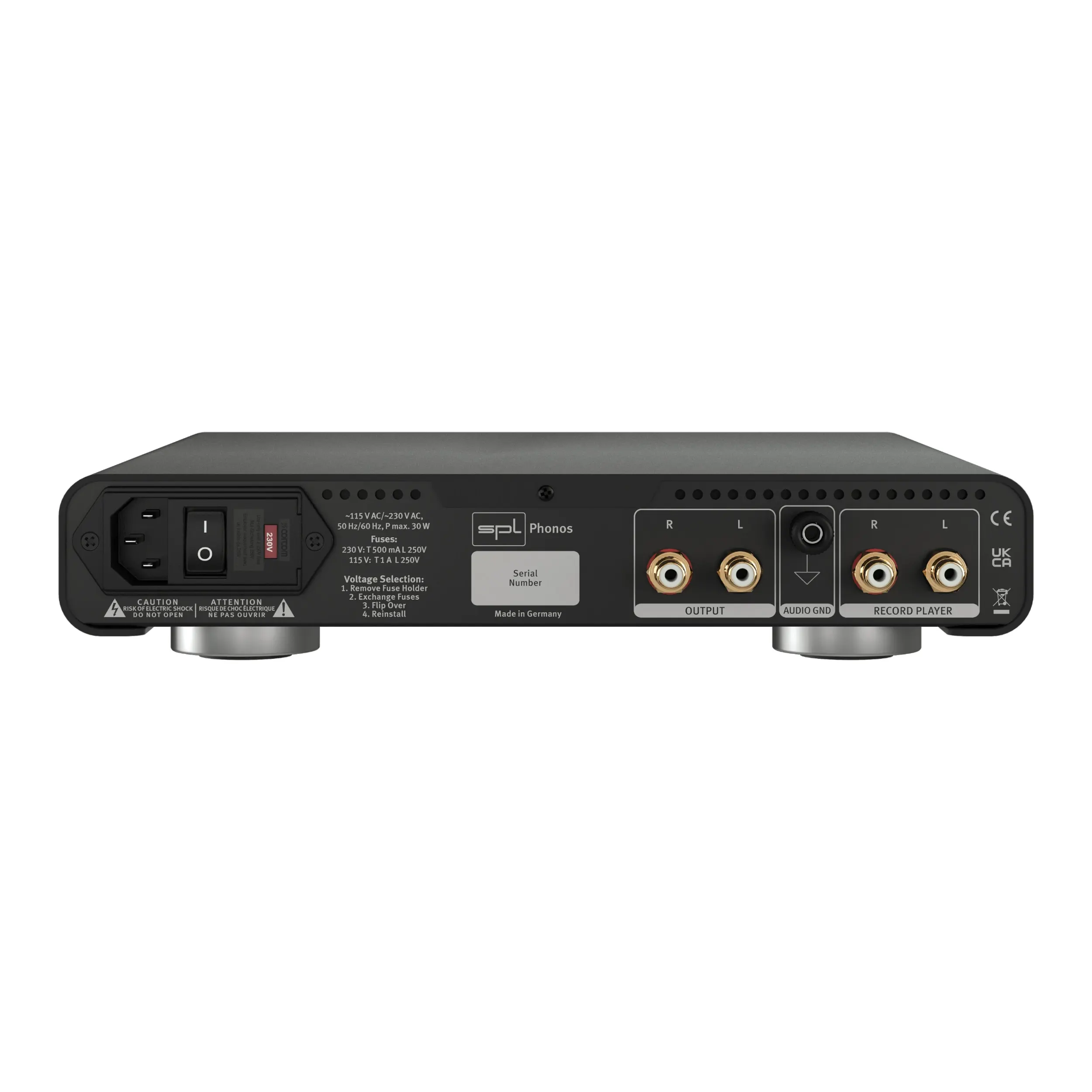

Analog Input & Output RCA
Input impedance (MM): 47 kΩ
Input impedance (MC): switchable
Output impedance: 75 Ω
Frequency range (-3 dB): 10 Hz – 100 kHz
Crosstalk (1 kHz): -80 dBu
Moving Magnet (MM) Preamplifier
Amplification (Norm): 46 dB
Amplification (-10 dB): 36 dB
Amplification (+4 dB): 50 dB
Capacitance (switchable): Off, 150 pF, 220 pF and 330 pF
Noise (A-weighted; 46 dB amplification): -85.3 dBu
Dynamic range: 131.3 dB
Moving Coil (MC) Preamplifier
Amplification (Norm): 67 dB
Amplification (-10 dB): 56 dB
Amplification (+4 dB): 71.5 dB
Impedance (switchable): 100 Ω, 220 Ω, 470 Ω, 2.2 kΩ, 4.7 kΩ, 10 kΩ
Noise (A-weighted, 67 dB amplification): -61.7 dBu
Dynamic range: 128.7 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: + 12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for x. 30 VA
Stand-by power consumption: < 0,3 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 278 x 100 x 300 mm
Unit weight: 3.2 kg
Shipping weight (incl. packaging): 4.3 kg
