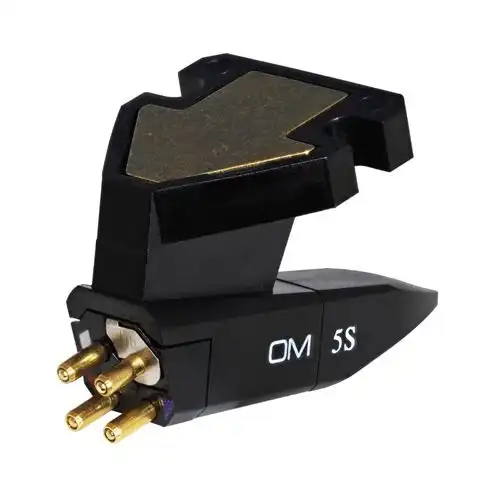

ORTOFON OM 5S Gramofonska Glava
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
The OM 5S has been developed to give as many people as possible access to the superior audio reproduction Ortofon are recognised for worldwide. Finished with a high-quality Spherical (S) diamond stylus profile for excellent record hold, it's a great, affordable way to take a step-up in sound quality and clarity.
Due to its longevity in the market, the OM range features a number of upgrade stylus options, including the Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and the 78 RPM Stylus 78.
- Affordable Optimum Match (OM) hi-fi cartridge
- Hi-Fi sound reproduction
- Spherical stylus profile
- Easy tonearm matching
- High output for easy matching to a phono stage
- Easy stylus upgrades
| Output Voltage (at 1kHz, 5cm/sec) | 4.5mV |
|---|---|
| Channel Balance at 1kHz | 2dB |
| Channel Separation at 1kHz | 20dB |
| Channel Separation at 15kHz | 12dB |
| Frequency Range (at -3dB) | 20Hz - 20kHz |
| Frequency Response | 20Hz - 22kHz |
| Tracking Ability at 315Hz | Typically 60μm |
| Compliance, Dynamic, Lateral | 20μm / mN |
| Stylus Type | Spherical |
| Stylus Tip Radius R | R 18μm |
| Tracking Force Range | 1.5 - 2.0g (15 - 20mN) |
| Recommended Tracking Force | 1.75g (17.5mN) |
| Tracking Angle | 20º |
| Internal Impedance / DC Resistance | 750Ω |
| Internal Inductance | 450mH |
| Recommended Load Resistance | 47kΩ |
| Recommended Load Capacitance | 200 - 500pF |
| Cartridge Colour Body / Stylus | Black / Black |
| Cartridge Weight | 2.5g |
| Replacement Stylus Unit | Stylus 5S |
