ORTOFON OM 5E Gramofonska Glava
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

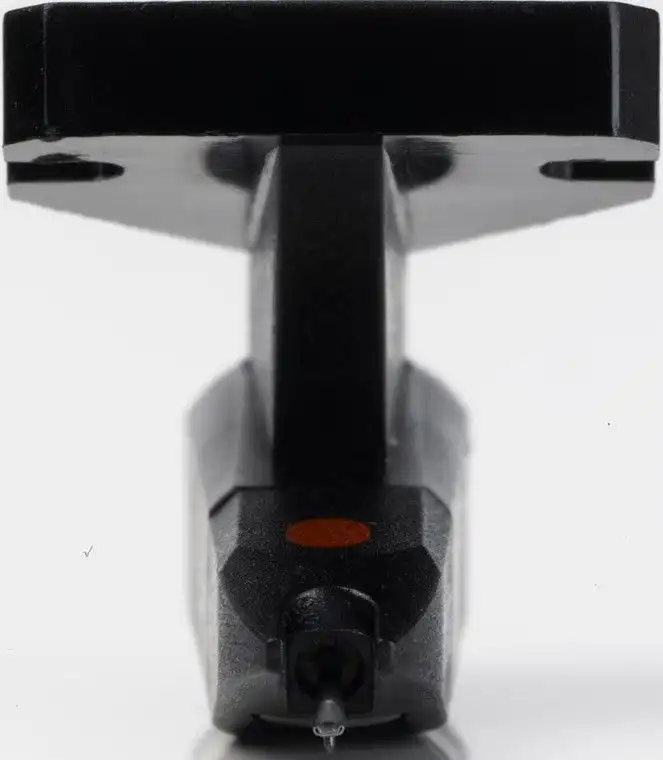

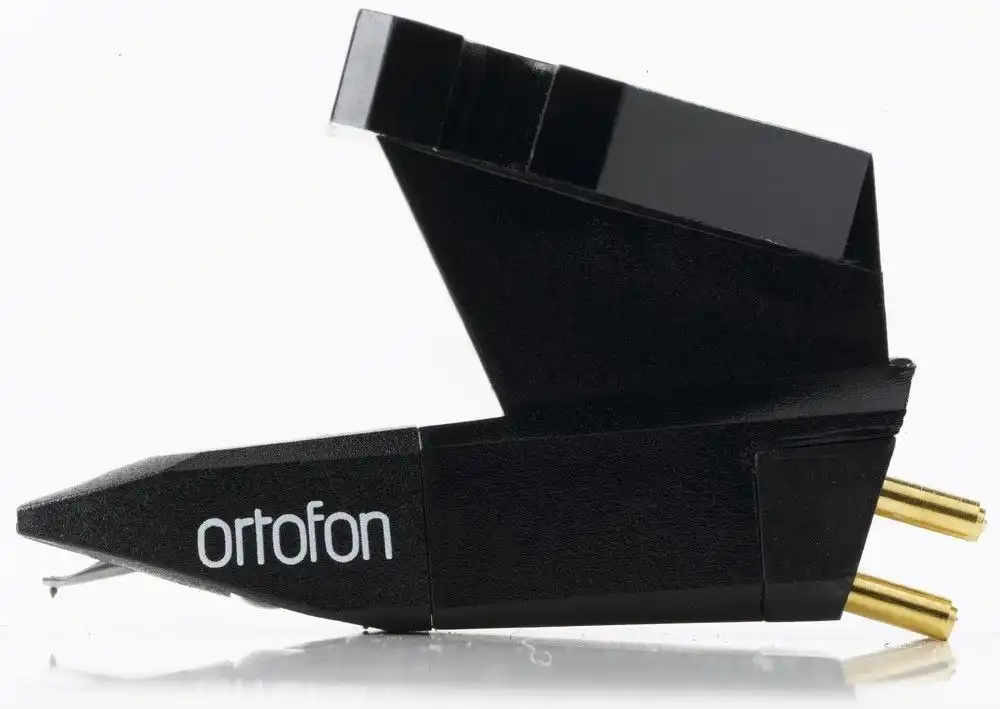

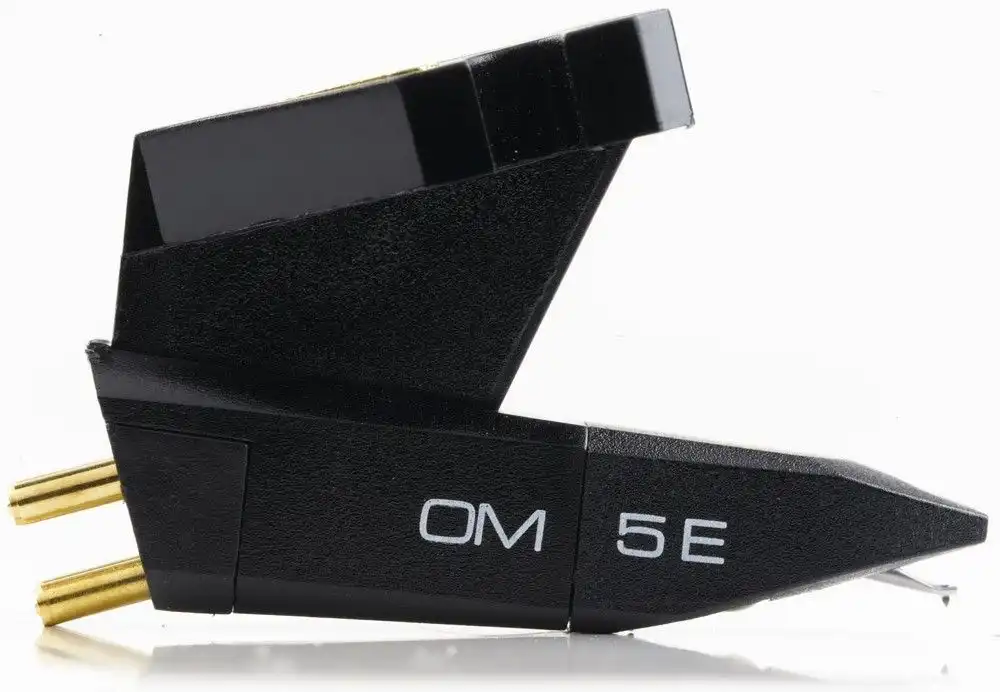

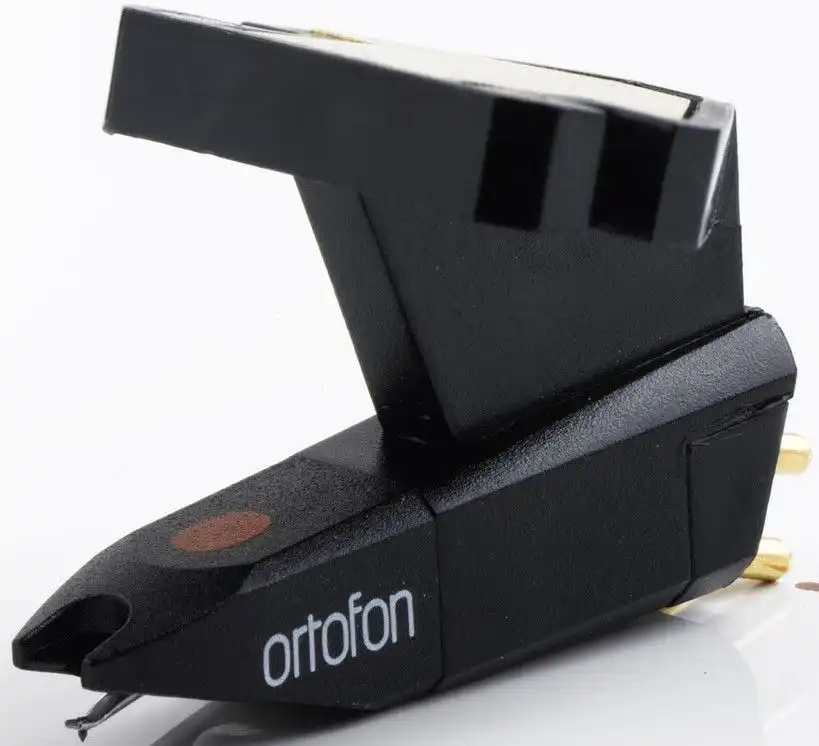

The Ortofon OM 5E is a moving magnet cartridge (MM) with an elliptical shaped stylus that provides balanced and distortion-free playback for general purpose applications. The Ortofon OM5 E is a highly affordable but very competent hi-fi cartridge.
As found on introductory turntables such as the hugely popular Pro-Ject Debut, the Ortofon OM5E is a highly affordable but very competent hi-fi cartridge. Using the same body type as the rest of Ortofon's instantly recognisable OM series, this model is a great accompaniment to your entry-level hi-fi set-up.
Please note, any OM-series replacement stylus will fit in this body, including the Stylus 78.
| Output voltage at 1000 Hz, 5cm/sec. | 4 mV |
|---|---|
| Channel balance at 1 kHz | 2 dB |
| Channel separation at 1 kHz | 22 dB |
| Channel separation at 15 kHz | 15 dB |
| Frequency range at - 3dB | 20-25.000 Hz |
| Frequency response | 20-20,000 Hz ± 2 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 65 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 1.5-2.0 g (15-20 mN) |
| Tracking force, recommended | 1.75 g (17.5 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 750 Ohm |
| Internal inductance | 450 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 200-600 pF |
| Cartridge colour, body/stylus | Black/Black |
| Cartridge weight | 5 g |
| Replacement stylus unit | Stylus 5 E |
