ORTOFON OM 5 Super Gramofonska Glava

Šifra: 17560
79,00 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.

Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

Prijavi povoljniju cijenu Obavijesti me ako cijena padne Postavi pitanje
Opcija:

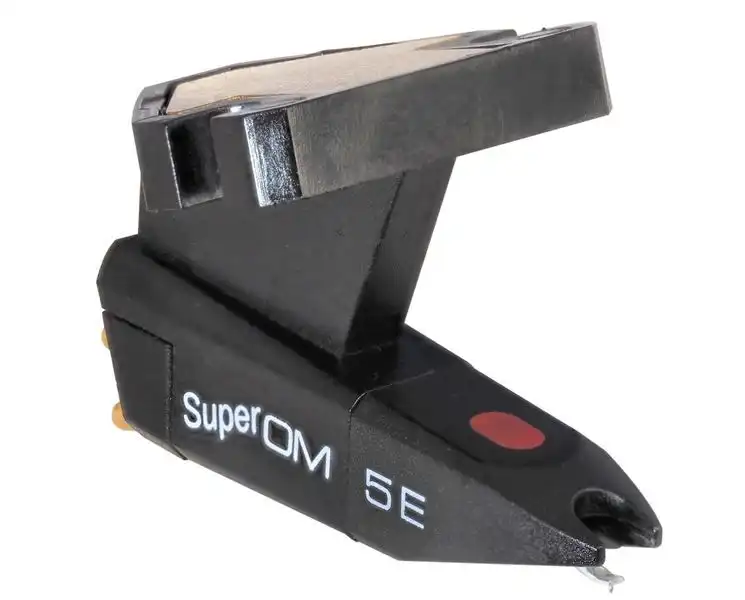

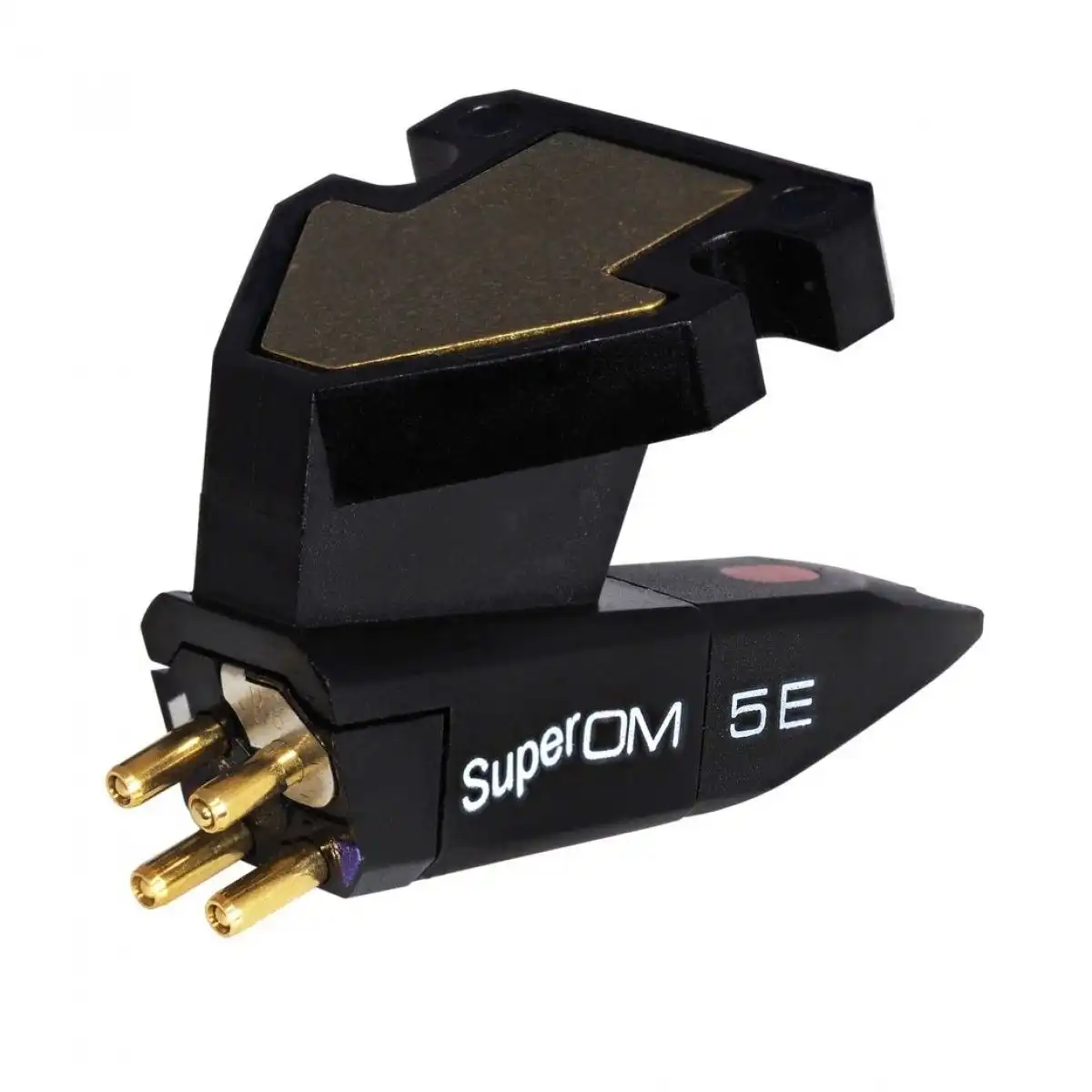

The Super OM 5E major improvements:
1. By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation and reduced distortion.

2. OM Super cartridges models have split pole PINs which reduces magnetic losses at the treble end. This technology extends the frequency range and improves phase linearity.

3. OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound) which ensures high rigidity and freedom from resonances.

The Super OM 5E has an improved generator system compared to the standard OM 5E. In this generator system, the same split-pole pin technology that's found on the coveted 2M range is used. Split pole pins reduce eddy current losses caused by magnetic hysteresis, resulting in an extended, flat frequency, similar to that found on a moving coil cartridge. The Super OM 5E development also used computer simulations to accurately define the natural pivot point of the system, resulting in improved linearity, higher channel separation and reduced distortion.

As well as being easy to fit to any tonearm/headshell system, all OM cartridge bodies also benefit from a tiny, removable weight above the mounting bracket. For standard tonearms, leave the weight in place as usual. For low-mass tonearms, you have the ability to remove the weight, reducing the cartridge weigh to just 2.5g.

The Super OM 5E features an Elliptical (E) stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

Output Voltage (at 1kHz, 5cm/sec) 4mV
Channel Balance at 1kHz 1.5dB
Channel Separation at 1kHz 22dB
Channel Separation at 15kHz 15dB
Frequency Range (at -3dB) 20Hz - 25kHz
Frequency Response 20Hz - 20kHz ± 2dB
Tracking Ability at 315Hz 65μm
Compliance, Dynamic, Lateral 20μm / mN
Stylus Type Elliptical
Stylus Tip Radius r / R 8 / 18μm
Tracking Force Range 1.5 - 2.0g (16 - 20mN)
Recommended Tracking Force 1.75g (17.5mN)
Tracking Angle 20º
Internal Impedance / DC Resistance 1kΩ
Internal Inductance 580mH
Recommended Load Resistance 47kΩ
Recommended Load Capacitance 200 - 500pF
Cartridge Colour Body / Stylus Black / Black
Cartridge Weight 5g (2.5g without the included weight)
Replacement Stylus Unit Stylus 5E
