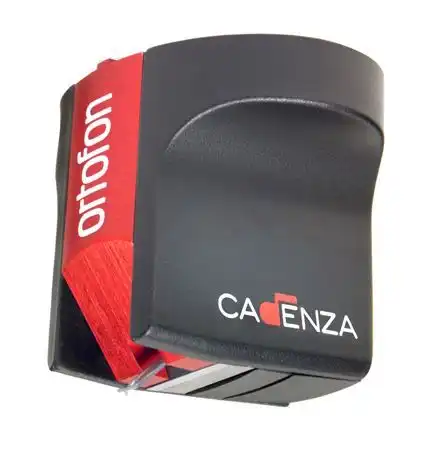

ORTOFON MC Cadenza Red Gramofonska Glava
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
The sound picture of Cadenza Red is relaxed, homogeneous and moderately dynamic and have great space and depth in the stereo image.
The Cadenza Red model is using a Nude Fine Line stylus with a cylindrical aluminium cantilever. The stylus tip radius is r/R 8/40 µm.
The coils are made from 6NX (99.9999 %) pure silver wire.
An improved winding process on the armature allows a better channel balance.
MC Cadenza Red Technical Data
Output voltage at 1 kHz 5 cm/sec - 0.45 mV
Channel balance - < 1.5 dB
Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency response 20 Hz - 20 kHz - +3/-1
Tracking ability at 315 Hz at recommended tracking force *) - 80 μm
Compliance, dynamic, lateral - 12 μm/mN
Stylus type - Nude Fine Line on Alu cantilever
Stylus tip radius - r/R 8/40 μm
Tracking force range - 2.2-2.7 g (22-27 mN)
Tracking force recommended - 2.5 g (25 mN)
*) Typical value
Tracking angle - 20º
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - 50-500 Ohm
Cartridge body material - Stainless steel Aluminium
Cartridge colour - Red/Black
Cartridge weight - 10.7 g
