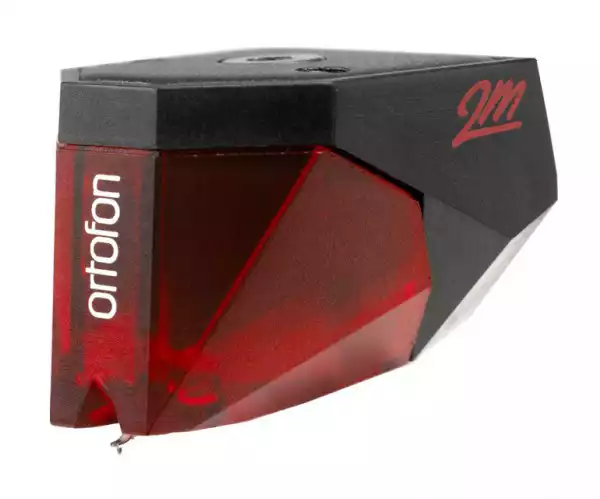

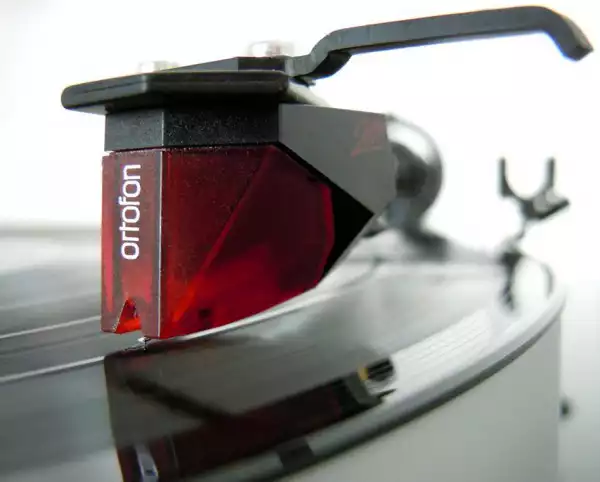

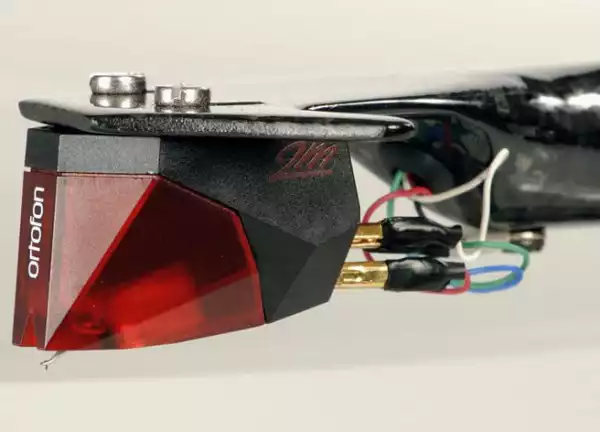

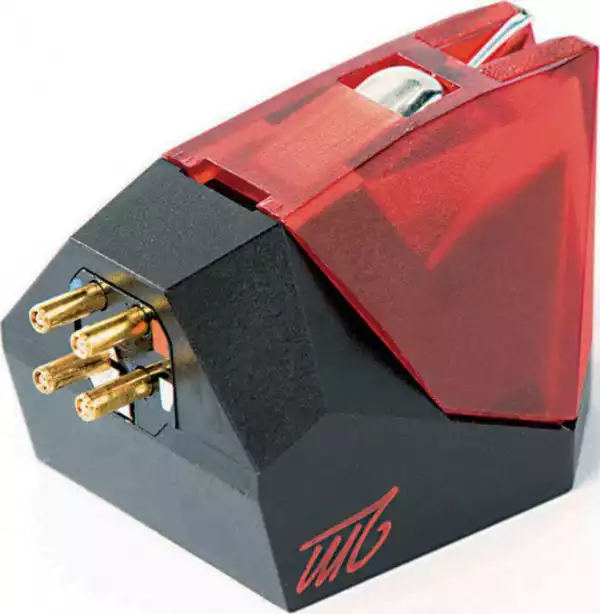

ORTOFON 2M Red Moving Magnet Cartridge - igla za gramofon
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
The 2M series of cartridges feature Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge.
The 2M Red is designed for precise and accurate retrieval of the information in the record groove. The Ortofon philosophy is to play the record sound as accurate as possible, without colouring the sound.
We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. The 2M Red provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.
|
Output voltage at 1000 Hz, 5cm/sec |
5.5 mV |
|
Channel balance at 1 kHz |
1,5 dB |
|
Channel separation at 1 kHz |
22 dB |
|
Channel separation at 15 kHz |
15 dB |
|
Frequency range at - 3dB |
20-22.000 Hz |
|
Frequency response |
20-20.000 Hz + 2 / - 1 dB |
|
Compliance, dynamic, lateral |
20 µm/mN |
|
Stylus type |
Elliptical |
|
Stylus tip radius |
r/R 8/18 µm |
|
Tracking force range |
1,6-2,0g (16-20 mN) |
|
Tracking force, recommended |
1,8 g (18 mN) |
|
Tracking angle |
20° |
|
Internal impedance, DC resistance |
1,3 kOhm |
|
Internal inductance |
700 mH |
|
Recommended load resistance |
47 kOhm |
|
Recommended load capacitance |
150-300 pF |
|
Cartridge weight |
7.2 g |
